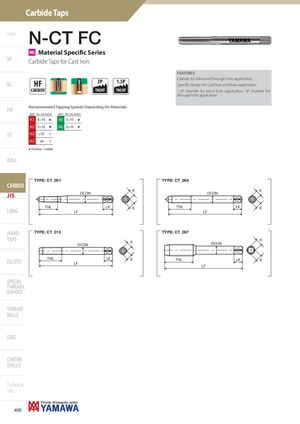

N-CT FC
MS Material Specifi c Series
SP Carbide Taps for Cast Iron
| HF | 3P | 1.5P | |
| SL | |||
| CARBIDE | THCHT | THCHT |
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min)
| K1 | 5÷15 | H | N2 | 5÷15 | H | |
| K2 | 5÷15 | H | N4 | 5÷15 | H | |
| ST | K3 | ≤10 | I | |||
| K4 | ≤8 | I |
H 1st choice I suitable ROLL
FEATURES Carbide for blind and through hole application. Specifi c design for Cast Iron and Brass application. 1.5P chamfer for blind hole application, 3P chamfer for through hole application.
JIS-N-CT FC
CARBIDE
JIS
LONG
TYPE: CT_001 TYPE: CT_004 K K DCON DCON
THL LK K THL LK K
LF LF
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
GAUGES
THREAD
MILLS
TYPE: CT_015 TYPE: CT_007 K K DCON DCON
THL LK K THL LK
K LF LF
