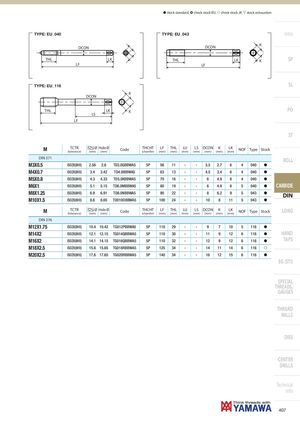

Общий каталог Yamawa 2021 - страница 406
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
K DCON DCON
THL LK SP
THL LK K
LF LF
TYPE: EU_116
THL LF
DCON
LS
LK
K
K
SL
PO
ST
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | ROLL | |||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.56 | 2.6 | TD3.0GBBWA5 | 5P | 56 | 11 | - | - | 3.5 | 2.7 | 6 | 4 | 040 | h | |
| M4X0.7 | ISO2X(6HX) | 3.4 | 3.42 | TD4.0IBBWA5 | 5P | 63 | 13 | - | - | 4.5 | 3.4 | 6 | 4 | 040 | h | |
| M5X0.8 | ISO2X(6HX) | 4.3 | 4.33 | TD5.0KBBWA5 | 5P | 70 | 16 | - | - | 6 | 4.9 | 8 | 4 | 040 | h | |
| M6X1 | ISO2X(6HX) | 5.1 | 5.15 | TD6.0MBBWA5 | 5P | 80 | 19 | - | - | 6 | 4.9 | 8 | 5 | 040 | h | CARBIDE |
| M8X1.25 | ISO2X(6HX) | 6.9 | 6.91 | TD8.0NBBWA5 | 5P | 90 | 22 | - | - | 8 | 6.2 | 9 | 5 | 043 | h | DIN |
| M10X1.5 | ISO2X(6HX) | 8.6 | 8.65 | TD010OBBWA5 | 5P | 100 | 24 | - | - | 10 | 8 | 11 | 5 | 043 | h | |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| DIN 376 | ||||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.4 | 10.42 | TG012PBBWA5 | 5P | 110 | 29 | - | - | 9 | 7 | 10 | 5 | 116 | h | |
| M14X2 | ISO2X(6HX) | 12.1 | 12.15 | TG014QBBWA5 | 5P | 110 | 30 | - | - | 11 | 9 | 12 | 6 | 116 | h | HAND |
| M16X2 | ISO2X(6HX) | 14.1 | 14.15 | TG016QBBWA5 | 5P | 110 | 32 | - | - | 12 | 9 | 12 | 6 | 116 | h | TAPS |
| M18X2.5 | ISO2X(6HX) | 15.6 | 15.65 | TG018RBBWA5 | 5P | 125 | 34 | - | - | 14 | 11 | 14 | 6 | 116 | f | |
| M20X2.5 | ISO2X(6HX) | 17.6 | 17.65 | TG020RBBWA5 | 5P | 140 | 34 | - | - | 16 | 12 | 15 | 6 | 116 | h | |
