Каталоги Yamawa твердосплавные метчики для закаленной стали

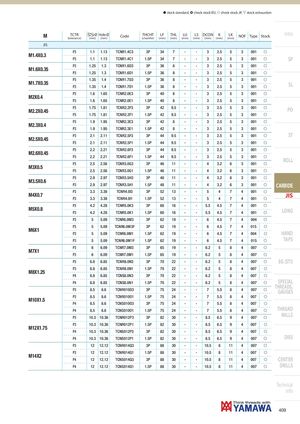

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NO | F | Type | Stock | Intro |
| JIS | P3 | 1.1 | 1.13 | TCNR1.4C3 | 3P | 34 | 7 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M1.4X0.3 | P3 | 1.1 | 1.13 | TCNR1.4C1 | 1.5P | 34 | 7 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | SP | |
| M16X035 | P3 | 1.25 | 1.3 | TCNR1.6D3 | 3P | 36 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| .. | P3 | 1.25 | 1.3 | TCNR1.6D1 | 1.5P | 36 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M17X035 | P3 | 1.35 | 1.4 | TCNR1.7D3 | 3P | 36 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| .. | P3 | 1.35 | 1.4 | TCNR1.7D1 | 1.5P | 36 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | SL | |
| M2X04 | P3 | 1.6 | 1.65 | TCNR2.0E3 | 3P | 40 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| . | P3 | 1.6 | 1.65 | TCNR2.0E1 | 1.5P | 40 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M22X045 | P3 | 1.75 | 1.81 | TCNR2.2F3 | 3P | 42 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | PO | |
| .. | P3 | 1.75 | 1.81 | TCNR2.2F1 | 1.5P | 42 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| P3 | 1.9 | 1.95 | TCNR2.3E3 | 3P | 42 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | |||
| M2.3X0.4 | P3 | 1.9 | 1.95 | TCNR2.3E1 | 1.5P | 42 | 8 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| P3 | 2.1 | 2.11 | TCNR2.5F3 | 3P | 44 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ST | ||
| M2.5X0.45 | P3 | 2.1 | 2.11 | TCNR2.5F1 | 1.5P | 44 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ||
| P3 | 2.2 | 2.21 | TCNR2.6F3 | 3P | 44 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | |||
| M2.6X0.45 | P3 | 2.2 | 2.21 | TCNR2.6F1 | 1.5P | 44 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | ROLL | |
| M3X05 | P3 | 2.5 | 2.56 | TCNR3.0G3 | 3P | 46 | 11 | - | - | 4 | 3.2 | 6 | 3 | 001 | f | ||
| . | P3 | 2.5 | 2.56 | TCNR3.0G1 | 1.5P | 46 | 11 | - | - | 4 | 3.2 | 6 | 3 | 001 | f | ||
| M35X06 | P3 | 2.9 | 2.97 | TCNR3.5H3 | 3P | 48 | 11 | - | - | 4 | 3.2 | 6 | 3 | 001 | f | ||
| .. | P3 | 2.9 | 2.97 | TCNR3.5H1 | 1.5P | 48 | 11 | - | - | 4 | 3.2 | 6 | 3 | 001 | f | CARBIDE | |
| P3 | 3.3 | 3.38 | TCNR4.0I3 | 3P | 52 | 13 | - | - | 5 | 4 | 7 | 4 | 001 | f | |||
| M4X0.7 | P3 | 3.3 | 3.38 | TCNR4.0I1 | 1.5P | 52 | 13 | - | - | 5 | 4 | 7 | 4 | 001 | f | JIS | |
| M5X08 | P3 | 4.2 | 4.28 | TCNR5.0K3 | 3P | 60 | 16 | - | - | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| . | P3 | 4.2 | 4.28 | TCNR5.0K1 | 1.5P | 60 | 16 | - | - | 5.5 | 4.5 | 7 | 4 | 001 | f | LONG | |
| P3 | 5 | 5.09 | TCNR6.0M3 | 3P | 62 | 19 | - | - | 6 | 4.5 | 7 | 4 | 004 | f | |||
| MX1 | P3 | 5 | 5.09 | TCNR6.0M3F | 3P | 62 | 19 | - | - | 6 | 4.5 | 7 | 4 | 015 | f | ||
| 6 | P3 | 5 | 5.09 | TCNR6.0M1 | 1.5P | 62 | 19 | - | - | 6 | 4.5 | 7 | 4 | 004 | f | HAND | |
| P3 | 5 | 5.09 | TCNR6.0M1F | 1.5P | 62 | 19 | - | - | 6 | 4.5 | 7 | 4 | 015 | f | TAPS | ||
| P3 | 6 | 6.09 | TCNR7.0M3 | 3P | 65 | 19 | - | - | 6.2 | 5 | 8 | 4 | 007 | f | |||
| M7X1 | P3 | 6 | 6.09 | TCNR7.0M1 | 1.5P | 65 | 19 | - | - | 6.2 | 5 | 8 | 4 | 007 | f | ||
| P3 | 6.8 | 6.85 | TCNR8.0N3 | 3P | 70 | 22 | - | - | 6.2 | 5 | 8 | 4 | 007 | f | EG (STI) | ||
| M8X125 | P3 | 6.8 | 6.85 | TCNR8.0N1 | 1.5P | 70 | 22 | - | - | 6.2 | 5 | 8 | 4 | 007 | f | ||
| . | P4 | 6.8 | 6.85 | TCNS8.0N3 | 3P | 70 | 22 | - | - | 6.2 | 5 | 8 | 4 | 007 | f | ||
| P4 | 6.8 | 6.85 | TCNS8.0N1 | 1.5P | 70 | 22 | - | - | 6.2 | 5 | 8 | 4 | 007 | f | SPECIAL THREADS | ||
| P3 | 8.5 | 8.6 | TCNR010O3 | 3P | 75 | 24 | - | - | 7 | 5.5 | 8 | 4 | 007 | f | , GAUGES | ||
| P3 | 85 | 86 | TCNR010O1 | 15P | 75 | 24 | - | - | 7 | 55 | 8 | 4 | 007 | f | |||
| M10X15 | . | . | . | . | |||||||||||||
| . | P4 | 8.5 | 8.6 | TCNS010O3 | 3P | 75 | 24 | - | - | 7 | 5.5 | 8 | 4 | 007 | f | ||
| P4 | 8.5 | 8.6 | TCNS010O1 | 1.5P | 75 | 24 | - | - | 7 | 5.5 | 8 | 4 | 007 | f | THREAD | ||
| P3 | 10.3 | 10.36 | TCNR012P3 | 3P | 82 | 30 | - | - | 8.5 | 6.5 | 9 | 4 | 007 | f | MILLS | ||
| P3 | 10.3 | 10.36 | TCNR012P1 | 1.5P | 82 | 30 | - | - | 8.5 | 6.5 | 9 | 4 | 007 | f | |||
| M12X1.75 | P4 | 10.3 | 10.36 | TCNS012P3 | 3P | 82 | 30 | - | - | 8.5 | 6.5 | 9 | 4 | 007 | f | ||
| DIES | |||||||||||||||||
| P4 | 10.3 | 10.36 | TCNS012P1 | 1.5P | 82 | 30 | - | - | 8.5 | 6.5 | 9 | 007 | f | ||||
| P3 | 12 | 12.12 | TCNR014Q3 | 3P | 88 | 30 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | |||
| P3 | 12 | 12.12 | TCNR014Q1 | 1.5P | 88 | 30 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | |||
| M14X2 | P4 | 12 | 12.12 | TCNS014Q3 | 3P | 88 | 30 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | CENTER | |
| P4 | 12 | 12.12 | TCNS014Q1 | 1.5P | 88 | 30 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | DRILLS |
