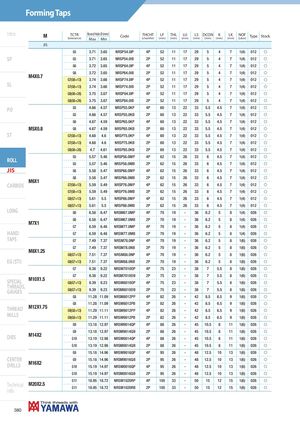

| Intro | M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | G5 | 3.71 | 3.65 | NRSP54.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | |
| SP | G5 | 3.71 | 3.65 | NRSP54.0IB | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | |
| G6 | 3.72 | 3.65 | NRSP64.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | ||
| M4X07 | G6 | 3.72 | 3.65 | NRSP64.0IB | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | |
| . | G7(G6+13) | 3.74 | 3.66 | NRSP74.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | |
| SL | G7(G6+13) | 3.74 | 3.66 | NRSP74.0IB | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | |
| G8(G6+26) | 3.75 | 3.67 | NRSP84.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | ||
| G8(G6+26) | 3.75 | 3.67 | NRSP84.0IB | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | ||
| PO | G5 | 4.66 | 4.57 | NRSP55.0KP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | |
| G5 | 4.66 | 4.57 | NRSP55.0KB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | ||
| G6 | 4.67 | 4.59 | NRSP65.0KP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | ||
| M5X0.8 | G6 | 4.67 | 4.59 | NRSP65.0KB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | |
| ST | G7(G6+13) | 4.68 | 4.6 | NRSP75.0KP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | |
| G7(G6+13) | 4.68 | 4.6 | NRSP75.0KB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | ||
| G8(G6+26) | 4.7 | 4.61 | NRSP85.0KB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | ||
| G5 | 5.57 | 5.46 | NRSP56.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | ||
| ROLL | G5 | 5.57 | 5.46 | NRSP56.0MB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | |
| JIS | G6 | 5.58 | 5.47 | NRSP66.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | |
| G6 | 5.58 | 5.47 | NRSP66.0MB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | ||
| CARBIDE | M6X1 | G7(G6+13) | 5.59 | 5.49 | NRSP76.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f |
| G7(G6+13) | 5.59 | 5.49 | NRSP76.0MB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | ||
| G8(G7+13) | 5.61 | 5.5 | NRSP86.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | ||
| G8(G7+13) | 5.61 | 5.5 | NRSP86.0MB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | ||
| LONG | G6 | 6.58 | 6.47 | NRSM67.0MP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(4) | 026 | f | |
| M7X1 | G6 | 6.58 | 6.47 | NRSM67.0MB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(4) | 026 | f | |
| G7 | 6.59 | 6.48 | NRSM77.0MP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(4) | 026 | f | ||
| HAND | G7 | 6.59 | 6.48 | NRSM77.0MB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(4) | 026 | f | |
| TAPS | G7 | 7.49 | 7.37 | NRSM78.0NP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(6) | 026 | f | |
| G7 | 7.49 | 7.37 | NRSM78.0NB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(6) | 026 | f | ||
| M8X1.25 | G8(G7+13) | 7.51 | 7.37 | NRSM88.0NP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(6) | 026 | f | |
| EG (STI) | G8(G7+13) | 7.51 | 7.37 | NRSM88.0NB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(6) | 026 | f | |
| G7 | 9.38 | 9.22 | NRSM7010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 1(6) | 026 | f | ||
| G7 | 9.38 | 9.22 | NRSM7010OB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 1(6) | 026 | f | ||
| SPECIAL | M10X1.5 | G8(G7+13) | 9.39 | 9.23 | NRSM8010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 1(6) | 026 | f |
| THREADS, GAUGES | G8(G7+13) | 9.39 | 9.23 | NRSM8010OB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 1(6) | 026 | f | |
| G8 | 11.28 | 11.09 | NRSM8012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | ||
| G8 | 11.28 | 11.09 | NRSM8012PB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | ||
| THREAD | M12X1.75 | G9(G8+13) | 11.29 | 11.11 | NRSM9012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f |
| MILLS | G9(G8+13) | 11.29 | 11.11 | NRSM9012PB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | |
| G9 | 13.18 | 12.97 | NRSM9014QP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f | ||
| G9 | 13.18 | 12.97 | NRSM9014QB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f | ||
| DIES | M14X2 | G10 | 13.19 | 12.98 | NRSM0014QP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f |
| G10 | 13.19 | 12.98 | NRSM0014QB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f | ||
| G9 | 15.18 | 14.96 | NRSM9016QP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 1(6) | 026 | f | ||
| CENTER | G9 | 15.18 | 14.96 | NRSM9016QB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 1(6) | 026 | f | |
| DRILLS | M16X2 | G10 | 15.19 | 14.97 | NRSM0016QP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 1(6) | 026 | f |
| G10 | 15.19 | 14.97 | NRSM0016QB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 1(6) | 026 | f | ||
| Technical | M20X2.5 | G11 | 18.95 | 18.72 | NRSM1020RP | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 1(6) | 026 | f |
| info | G11 | 18.95 | 18.72 | NRSM1020RB | 2P | 105 | 33 | - | 50 | 15 | 12 | 15 | 1(6) | 026 | f |
