Каталоги Yamawa твердосплавные метчики для закаленной стали

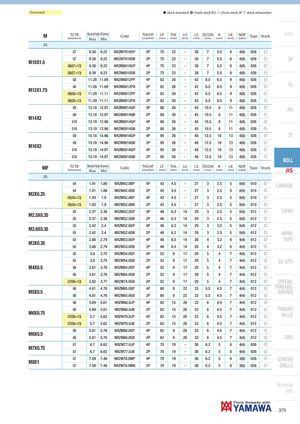

| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | Intro |
| JIS | ||||||||||||||||
| G7 | 9.38 | 9.22 | NRZM7010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | ||
| M10X15 | G7 | 9.38 | 9.22 | NRZM7010OB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | SP |
| . | G8(G7+13) | 9.39 | 9.23 | NRZM8010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| G8(G7+13) | 9.39 | 9.23 | NRZM8010OB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | ||
| G8 | 11.28 | 11.09 | NRZM8012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | ||
| G8 | 11.28 | 11.09 | NRZM8012PB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | SL | |
| M12X1.75 | G9(G8+13) | 11.29 | 11.11 | NRZM9012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G9(G8+13) | 11.29 | 11.11 | NRZM9012PB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | ||
| G9 | 13.18 | 12.97 | NRZM9014QP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | PO | |
| G9 | 13.18 | 12.97 | NRZM9014QB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | ||
| M14X2 | G10 | 13.19 | 12.98 | NRZM0014QP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | |
| G10 | 13.19 | 12.98 | NRZM0014QB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | ||
| G9 | 15.18 | 14.96 | NRZM9016QP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | ST | |
| G9 | 15.18 | 14.96 | NRZM9016QB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | ||
| M16X2 | G10 | 15.19 | 14.97 | NRZM0016QP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | |
| G10 | 15.19 | 14.97 | NRZM0016QB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | ROLL | |
| MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | JIS |
| JIS | ||||||||||||||||
| G4 | 1.91 | 1.89 | NRZM42.0BP | 4P | 42 | 4.5 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | CARBIDE | |
| M2X025 | G4 | 1.91 | 1.89 | NRZM42.0BB | 2P | 42 | 4.5 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| . | G5(G4+13) | 1.93 | 1.9 | NRZM52.0BP | 4P | 42 | 4.5 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| G5(G4+13) | 1.93 | 1.9 | NRZM52.0BB | 2P | 42 | 4.5 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | ||
| G5 | 2.37 | 2.36 | NRZM52.5DP | 4P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | LONG | |
| M2.5X0.35 | G5 | 2.37 | 2.36 | NRZM52.5DB | 2P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | |
| M2X | G5 | 2.42 | 2.4 | NRZM52.6DP | 4P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | |
| .60.35 | G5 | 2.42 | 2.4 | NRZM52.6DB | 2P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | HAND |
| G5 | 2.86 | 2.79 | NRZM53.0DP | 4P | 46 | 6.5 | 14 | 26 | 4 | 3.2 | 6 | 4(4) | 012 | f | TAPS | |
| M3X0.35 | G5 | 2.86 | 2.79 | NRZM53.0DB | 2P | 46 | 6.5 | 14 | 26 | 4 | 3.2 | 6 | 4(4) | 012 | f | |
| G5 | 3.8 | 3.75 | NRZM54.0GP | 4P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | ||
| G5 | 3.8 | 3.75 | NRZM54.0GB | 2P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | EG (STI) | |
| M4X0.5 | G6 | 3.81 | 3.76 | NRZM64.0GP | 4P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | |
| G6 | 3.81 | 3.76 | NRZM64.0GB | 2P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | ||
| G7(G6+13) | 3.82 | 3.77 | NRZM74.0GB | 2P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | SPECIAL | |
| M5X05 | G6 | 4.81 | 4.76 | NRZM65.0GP | 4P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 4(4) | 012 | f | THREADS, GAUGES |
| . | G6 | 4.81 | 4.76 | NRZM65.0GB | 2P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 4(4) | 012 | f | |
| G6 | 5.69 | 5.61 | NRZM66.0JP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | ||
| M6X075 | G6 | 5.69 | 5.61 | NRZM66.0JB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | THREAD |
| . | G7(G6+13) | 5.7 | 5.62 | NRZM76.0JP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | MILLS |
| G7(G6+13) | 5.7 | 5.62 | NRZM76.0JB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | ||
| G6 | 5.81 | 5.76 | NRZM66.0GP | 4P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | ||
| M6X0.5 | G6 | 5.81 | 5.76 | NRZM66.0GB | 2P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | DIES |
| G7 | 6.7 | 6.62 | NRZM77.0JP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4(4) | 026 | f | ||
| M7X0.75 | G7 | 6.7 | 6.62 | NRZM77.0JB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4(4) | 026 | f | |
| G7 | 7.59 | 7.48 | NRZM78.0MP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | CENTER | |
| M8X1 | G7 | 7.59 | 7.48 | NRZM78.0MB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | DRILLS |
