Каталоги Yamawa твердосплавные метчики для закаленной стали

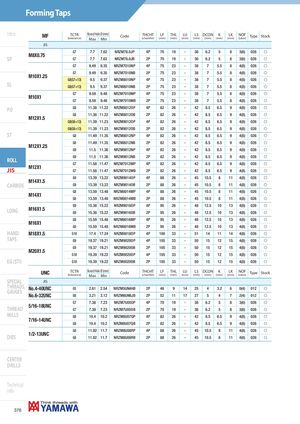

| MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | |||||||||||||||
| M8X075 | G7 | 7.7 | 7.62 | NRZM78.0JP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f |
| . | G7 | 7.7 | 7.62 | NRZM78.0JB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f |
| G7 | 9.49 | 9.35 | NRZM7010NP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| M1X12 | G7 | 9.49 | 9.35 | NRZM7010NB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f |
| 0.5 | G8(G7+13) | 9.5 | 9.37 | NRZM8010NP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f |
| G8(G7+13) | 9.5 | 9.37 | NRZM8010NB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| G7 | 9.59 | 9.48 | NRZM7010MP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| M10X1 | G7 | 9.59 | 9.48 | NRZM7010MB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f |
| G8 | 11.38 | 11.22 | NRZM8012OP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| M12X1 | G8 | 11.38 | 11.22 | NRZM8012OB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| .5 | G9(G8+13) | 11.39 | 11.23 | NRZM9012OP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| G9(G8+13) | 11.39 | 11.23 | NRZM9012OB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G8 | 11.49 | 11.35 | NRZM8012NP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G8 | 11.49 | 11.35 | NRZM8012NB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| M12X1.25 | G9 | 11.5 | 11.36 | NRZM9012NP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| G9 | 11.5 | 11.36 | NRZM9012NB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| M12X1 | G7 | 11.58 | 11.47 | NRZM7012MP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| G7 | 11.58 | 11.47 | NRZM7012MB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G9 | 13.39 | 13.22 | NRZM9014OP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | |
| M14X1.5 | G9 | 13.39 | 13.22 | NRZM9014OB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f |
| M14X1 | G8 | 13.59 | 13.48 | NRZM8014MP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f |
| G8 | 13.59 | 13.48 | NRZM8014MB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | |
| G9 | 15.38 | 15.22 | NRZM9016OP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | |
| M16X1.5 | G9 | 15.38 | 15.22 | NRZM9016OB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f |
| M16X1 | G8 | 15.59 | 15.48 | NRZM8016MP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f |
| G8 | 15.59 | 15.48 | NRZM8016MB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | |
| M18X1.5 | G10 | 17.4 | 17.24 | NRZM0018OP | 4P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4(8) | 026 | f |
| G9 | 19.37 | 19.21 | NRZM9020OP | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4(8) | 026 | f | |
| G9 | 19.37 | 19.21 | NRZM9020OB | 2P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4(8) | 026 | f | |
| M20X1.5 | G10 | 19.39 | 19.22 | NRZM0020OP | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4(8) | 026 | f |
| G10 | 19.39 | 19.22 | NRZM0020OB | 2P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4(8) | 026 | f | |
| UNC | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | |||||||||||||||
| No.4-40UNC | G5 | 2.61 | 2.54 | NRZM5UN4HB | 2P | 46 | 9 | 14 | 25 | 4 | 3.2 | 6 | 0(4) | 012 | f |
| No.6-32UNC | G6 | 3.21 | 3.12 | NRZM6UN6JB | 2P | 52 | 11 | 17 | 27 | 5 | 4 | 7 | 2(4) | 012 | f |
| G7 | 7.38 | 7.23 | NRZM7U05OP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | |
| 5/16-18UNC | G7 | 7.38 | 7.23 | NRZM7U05OB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f |
| 7/1614UNC | G8 | 10.4 | 10.2 | NRZM8U07QP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| - | G8 | 10.4 | 10.2 | NRZM8U07QB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| G8 | 11.92 | 11.7 | NRZM8U08RP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f | |
| 1/2-13UNC | G8 | 11.92 | 11.7 | NRZM8U08RB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f |
