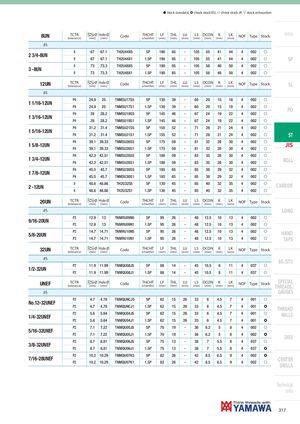

| 8UN | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| II | 67 | 67.1 | TH2U44X5 | 5P | 190 | 85 | - | 105 | 55 | 41 | 44 | 4 | 002 | f | ||
| 2 3/4-8UN | II | 67 | 67.1 | TH2U44X1 | 1.5P | 190 | 85 | - | 105 | 55 | 41 | 44 | 4 | 002 | f | SP |
| 3 8UN | II | 73 | 73.3 | TH2U48X5 | 5P | 190 | 85 | - | 105 | 58 | 46 | 50 | 4 | 002 | f | |
| - | II | 73 | 73.3 | TH2U48X1 | 1.5P | 190 | 85 | - | 105 | 58 | 46 | 50 | 4 | 002 | f | |
| 12UN JIS | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SL |
| P4 | 24.9 | 25 | TNMSU17S5 | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | ||
| 1 1/16-12UN | P4 | 24.9 | 25 | TNMSU17S1 | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | PO |
| P4 | 28 | 28.2 | TNMSU19S5 | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | ||
| 1 3/16-12UN | P4 | 28 | 28.2 | TNMSU19S1 | 1.5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | |
| P4 | 31.2 | 31.4 | TNMSU21S5 | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | ||
| 1 5/16-12UN | P4 | 31.2 | 31.4 | TNMSU21S1 | 1.5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | ST |
| P4 | 39.1 | 39.33 | TNMSU26S5 | 5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f | ||
| 1 5/8-12UN | P4 | 39.1 | 39.33 | TNMSU26S1 | 1.5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f | JIS |
| P4 | 42.3 | 42.51 | TNMSU28S5 | 5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | ||
| 1 3/4-12UN | P4 | 42.3 | 42.51 | TNMSU28S1 | 1.5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | ROLL |
| P4 | 45.5 | 45.7 | TNMSU30S5 | 5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f | ||
| 1 7/8-12UN | P4 | 45.5 | 45.7 | TNMSU30S1 | 1.5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f | |
| II | 48.6 | 48.86 | TH2U32S5 | 5P | 130 | 45 | - | 85 | 40 | 32 | 35 | 4 | 002 | f | CARBIDE | |
| 2 -12UN | II | 48.6 | 48.86 | TH2U32S1 | 1.5P | 130 | 45 | - | 85 | 40 | 32 | 35 | 4 | 002 | f | |
| 20UN | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | LONG | |||||||||||||||
| P3 | 12.9 | 13 | TNMRU09N5 | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | ||
| 9/16-20UN | P3 | 12.9 | 13 | TNMRU09N1 | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | |
| 5/8-20UN | P3 P3 | 14.7 14.7 | 14.71 14.71 | TNMRU10N5 TNMRU10N1 | 5P 1.5P | 95 95 | 26 26 | - - | 48 48 | 12.5 12.5 | 10 10 | 13 13 | 4 4 | 002 002 | f f | HAND TAPS |
| 32UN | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | EG (STI) | |||||||||||||||
| P2 | 11.9 | 11.99 | TNMQU08J5 | 5P | 88 | 14 | - | 45 | 10.5 | 8 | 11 | 4 | 037 | f | ||
| 1/2-32UN | P2 | 11.9 | 11.99 | TNMQU08J1 | 1.5P | 88 | 14 | - | 45 | 10.5 | 8 | 11 | 4 | 037 | f | |
| UNEF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SPECIAL THREADS |
| JIS | , GAUGES | |||||||||||||||
| P2 | 4.7 | 4.78 | TNMQUNCJ5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| No.12-32UNEF | P2 | 4.7 | 4.78 | TNMQUNCJ1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | ) | THREAD |
| P2 | 5.6 | 5.64 | TNMQU04J5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | MILLS | |
| 1/4-32UNEF | P2 | 5.6 | 5.64 | TNMQU04J1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | ) | |
| P2 | 7.1 | 7.22 | TNMQU05J5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | ||
| 5/16-32UNEF | P2 | 7.1 | 7.22 | TNMQU05J1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | ) | DIES |
| P2 | 8.7 | 8.81 | TNMQU06J5 | 5P | 75 | 13 | - | 38 | 7 | 5.5 | 8 | 4 | 037 | f | ||
| 3/8-32UNEF | P2 | 8.7 | 8.81 | TNMQU06J1 | 1.5P | 75 | 13 | - | 38 | 7 | 5.5 | 8 | 4 | 037 | ) | |
| 7/16-28UNEF | P2 | 10.2 | 10.29 | TNMQU07K5 | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | ) | CENTER |
| P2 | 10.2 | 10.29 | TNMQU07K1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | DRILLS |
