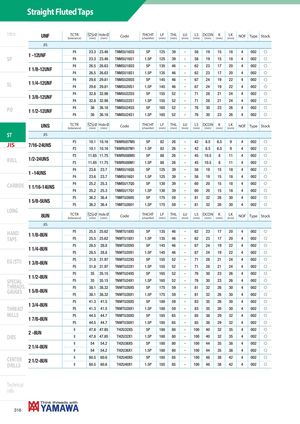

Общий каталог Yamawa 2021 - страница 315
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| P4 | 23.3 | 23.46 | TNMSU16S5 | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | |
| 1 -12UNF | P4 | 23.3 | 23.46 | TNMSU16S1 | 1.5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f |
| 1 1/812UNF | P4 | 26.5 | 26.63 | TNMSU18S5 | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f |
| - | P4 | 26.5 | 26.63 | TNMSU18S1 | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f |
| P4 | 29.6 | 29.81 | TNMSU20S5 | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | |
| 1 1/4-12UNF | P4 | 29.6 | 29.81 | TNMSU20S1 | 1.5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f |
| P4 | 32.8 | 32.98 | TNMSU22S5 | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| 1 3/8-12UNF | P4 | 32.8 | 32.98 | TNMSU22S1 | 1.5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f |
| 1 1/212UNF | P4 | 36 | 36.16 | TNMSU24S5 | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f |
| - | P4 | 36 | 36.16 | TNMSU24S1 | 1.5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f |
| UNS | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| 7/16-24UNS | P3 | 10.1 | 10.16 | TNMRU07M5 | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f |
| P3 | 10.1 | 10.16 | TNMRU07M1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | |
| 1/2-24UNS | P3 | 11.65 | 11.75 | TNMRU08M5 | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f |
| P3 | 11.65 | 11.75 | TNMRU08M1 | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | |
| 1 14UNS | P4 | 23.6 | 23.7 | TNMSU16Q5 | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f |
| - | P4 | 23.6 | 23.7 | TNMSU16Q1 | 1.5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f |
| P4 | 25.2 | 25.3 | TNMSU17Q5 | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | |
| 1 1/16-14UNS | P4 | 25.2 | 25.3 | TNMSU17Q1 | 1.5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f |
| P5 | 36.2 | 36.4 | TNMTU2605 | 5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f | |
| 1 5/8-5UNS | P5 | 36.2 | 36.4 | TNMTU2601 | 1.5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f |
| 8UN | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| P5 | 25.5 | 25.62 | TNMTU18X5 | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| 1 1/8-8UN | P5 | 25.5 | 25.62 | TNMTU18X1 | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f |
| P5 | 28.5 | 28.8 | TNMTU20X5 | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | |
| 1 1/4-8UN | P5 | 28.5 | 28.8 | TNMTU20X1 | 1.5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f |
| P5 | 31.8 | 31.97 | TNMTU22X5 | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| 1 3/8-8UN | P5 | 31.8 | 31.97 | TNMTU22X1 | 1.5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f |
| P5 | 35 | 35.15 | TNMTU24X5 | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f | |
| 1 1/2-8UN | P5 | 35 | 35.15 | TNMTU24X1 | 1.5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f |
| 1 5/8-8UN | P5 | 38.1 | 38.32 | TNMTU26X5 | 5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f |
| P5 | 38.1 | 38.32 | TNMTU26X1 | 1.5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f | |
| P5 | 41.3 | 41.5 | TNMTU28X5 | 5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | |
| 1 3/4-8UN | P5 | 41.3 | 41.5 | TNMTU28X1 | 1.5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f |
| P5 | 44.5 | 44.7 | TNMTU30X5 | 5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f | |
| 1 7/8-8UN | P5 | 44.5 | 44.7 | TNMTU30X1 | 1.5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f |
| II | 47.8 | 47.85 | TH2U32X5 | 5P | 180 | 80 | - | 100 | 40 | 32 | 35 | 4 | 002 | f | |
| 2 -8UN | II | 47.8 | 47.85 | TH2U32X1 | 1.5P | 180 | 80 | - | 100 | 40 | 32 | 35 | 4 | 002 | f |
| II | 54 | 54.2 | TH2U36X5 | 5P | 180 | 80 | - | 100 | 44 | 35 | 38 | 4 | 002 | f | |
| 2 1/4-8UN | II | 54 | 54.2 | TH2U36X1 | 1.5P | 180 | 80 | - | 100 | 44 | 35 | 38 | 4 | 002 | f |
| II | 60.5 | 60.6 | TH2U40X5 | 5P | 185 | 85 | - | 100 | 48 | 38 | 42 | 4 | 002 | f | |
| 2 1/2-8UN | II | 60.5 | 60.6 | TH2U40X1 | 1.5P | 185 | 85 | - | 100 | 48 | 38 | 42 | 4 | 002 | f |
