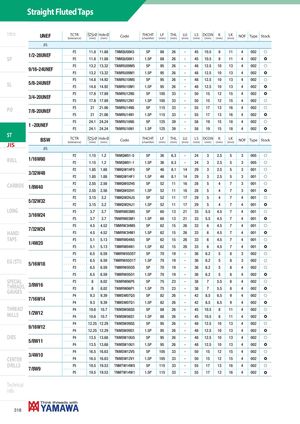

Straight Fluted Taps Intro UNEF TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock JIS P2 11.8 11.88 TNMQU08K5 5P 88 26 - 45 10.5 8 11 4 002 f 1/2-28UNEF SP P2 11.8 11.88 TNMQU08K1 1.5P 88 26 - 45 10.5 8 11 4 002 ) P3 13.2 13.32 TNMRU09M5 5P 95 26 - 48 12.5 10 13 4 002 f 9/16-24UNEF P3 13.2 13.32 TNMRU09M1 1.5P 95 26 - 48 12.5 10 13 4 002 ) P3 14.8 14.92 TNMRU10M5 5P 95 26 - 48 12.5 10 13 4 002 f SL 5/8-24UNEF P3 14.8 14.92 TNMRU10M1 1.5P 95 26 - 48 12.5 10 13 4 002 ) P3 17.8 17.89 TNMRU12N5 5P 105 33 - 50 15 12 15 4 002 ) 3/4-20UNEF P3 17.8 17.89 TNMRU12N1 1.5P 105 33 - 50 15 12 15 4 002 f PO 7/8-20UNEF P3 21 21.06 TNMRU14N5 5P 115 33 - 55 17 13 16 4 002 f P3 21 21.06 TNMRU14N1 1.5P 115 33 - 55 17 13 16 4 002 ) P3 24.1 24.24 TNMRU16N5 5P 125 39 - 58 19 15 18 4 002 f 1 -20UNEF P3 24.1 24.24 TNMRU16N1 1.5P 125 39 - 58 19 15 18 4 002 ) ST JIS BSW TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock JIS P2 1.15 1.2 TNMQW01-5 5P 36 6.3 - 24 3 2.5 5 3 005 f ROLL 1/16W60 P2 1.15 1.2 TNMQW01-1 1.5P 36 6.3 - 24 3 2.5 5 3 005 f P2 1.85 1.88 TNMQW1HF5 5P 46 8.1 14 29 3 2.5 5 3 001 f 3/32W48 P2 1.85 1.88 TNMQW1HF1 1.5P 46 8.1 14 29 3 2.5 5 3 001 f CARBIDE 1/8W40 P2 2.55 2.56 TNMQW02H5 5P 52 11 16 28 5 4 7 3 001 f P2 2.55 2.56 TNMQW02H1 1.5P 52 11 16 28 5 4 7 3 001 ) P2 3.15 3.2 TNMQW2HJ5 5P 52 11 17 29 5 4 7 4 001 f 5/32W32 P2 3.15 3.2 TNMQW2HJ1 1.5P 52 11 17 29 5 4 7 4 001 ) LONG P3 3.7 3.7 TNMRW03M5 5P 60 13 21 33 5.5 4.5 7 4 001 f 3/16W24 P3 3.7 3.7 TNMRW03M1 1.5P 60 13 21 33 5.5 4.5 7 4 001 ) P3 4.5 4.52 TNMRW3HM5 5P 62 15 26 33 6 4.5 7 4 001 f 7/32W24 HAND P3 4.5 4.52 TNMRW3HM1 1.5P 62 15 26 33 6 4.5 7 4 001 ) TAPS P3 5.1 5.13 TNMRW04N5 5P 62 15 26 33 6 4.5 7 4 001 f 1/4W20 P3 5.1 5.13 TNMRW04N1 1.5P 62 15 26 33 6 4.5 7 4 001 ) P3 6.5 6.59 TNMRW05O5T 5P 70 19 - 36 6.2 5 8 3 002 f EG (STI) 5/16W18 P3 6.5 6.59 TNMRW05O1T 1.5P 70 19 - 36 6.2 5 8 3 002 f P3 6.5 6.59 TNMRW05O5 5P 70 19 - 36 6.2 5 8 4 002 f P3 6.5 6.59 TNMRW05O1 1.5P 70 19 - 36 6.2 5 8 4 002 ) SPECIALTHREADS,3/8W16GAUGES P3 8 8.02 TNMRW06P5 5P 75 23 - 38 7 5.5 8 4 002 fP388.02TNMRW06P11.5P7523-3875.584002) P4 9.3 9.39 TNMSW07Q5 5P 82 26 - 42 8.5 6.5 9 4 002 f 7/16W14 P4 9.3 9.39 TNMSW07Q1 1.5P 82 26 - 42 8.5 6.5 9 4 002 ) THREAD P4 10.6 10.7 TNMSW08S5 5P 88 26 - 45 10.5 8 11 4 002 f MILLS 1/2W12 P4 10.6 10.7 TNMSW08S1 1.5P 88 26 - 45 10.5 8 11 4 002 ) P4 12.25 12.29 TNMSW09S5 5P 95 26 - 48 12.5 10 13 4 002 f 9/16W12 P4 12.25 12.29 TNMSW09S1 1.5P 95 26 - 48 12.5 10 13 4 002 ) DIES 5/8W11 P4 13.5 13.68 TNMSW10U5 5P 95 26 - 48 12.5 10 13 4 002 f P4 13.5 13.68 TNMSW10U1 1.5P 95 26 - 48 12.5 10 13 4 002 ) P4 16.5 16.63 TNMSW12V5 5P 105 33 - 50 15 12 15 4 002 f 3/4W10 CENTER P4 16.5 16.63 TNMSW12V1 1.5P 105 33 - 50 15 12 15 4 002 ) DRILLS 7/8W9 P5 19.5 19.53 TNMTW14W5 5P 115 33 - 55 17 13 16 4 002 f P5 19.5 19.53 TNMTW14W1 1.5P 115 33 - 55 17 13 16 4 002 ) Technical info 318
