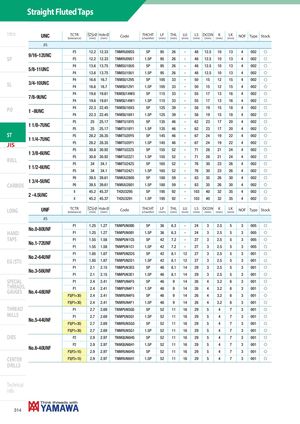

| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| P3 | 12.2 | 12.33 | TNMRU09S5 | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | |
| 9/16-12UNC | P3 | 12.2 | 12.33 | TNMRU09S1 | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f |
| /11NC | P4 | 13.6 | 13.75 | TNMSU10U5 | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f |
| 58-U | P4 | 13.6 | 13.75 | TNMSU10U1 | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f |
| 3/4-10UNC | P4 | 16.6 | 16.7 | TNMSU12V5 | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f |
| P4 | 16.6 | 16.7 | TNMSU12V1 | 1.5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | |
| 7/8-9UNC | P4 | 19.6 | 19.61 | TNMSU14W5 | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 002 | f |
| P4 | 19.6 | 19.61 | TNMSU14W1 | 1.5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 002 | f | |
| P4 | 22.3 | 22.45 | TNMSU16X5 | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f | |
| 1 -8UNC | P4 | 22.3 | 22.45 | TNMSU16X1 | 1.5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 4 | 002 | f |
| P5 | 25 | 25.17 | TNMTU18Y5 | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| 1 1/8-7UNC | P5 | 25 | 25.17 | TNMTU18Y1 | 1.5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f |
| P5 | 28.2 | 28.35 | TNMTU20Y5 | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | |
| 1 1/4-7UNC | P5 | 28.2 | 28.35 | TNMTU20Y1 | 1.5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f |
| P5 | 30.8 | 30.92 | TNMTU22Z5 | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| 1 3/8-6UNC | P5 | 30.8 | 30.92 | TNMTU22Z1 | 1.5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f |
| 1 1/2-6UNC | P5 | 34 | 34.1 | TNMTU24Z5 | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f |
| P5 | 34 | 34.1 | TNMTU24Z1 | 1.5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f | |
| P6 | 39.5 | 39.61 | TNMUU2805 | 5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | |
| 1 3/4-5UNC | P6 | 39.5 | 39.61 | TNMUU2801 | 1.5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f |
| II | 45.2 | 45.37 | TH2U3295 | 5P | 195 | 92 | - | 103 | 40 | 32 | 35 | 4 | 002 | f | |
| 2 -4.5UNC | II | 45.2 | 45.37 | TH2U3291 | 1.5P | 195 | 92 | - | 103 | 40 | 32 | 35 | 4 | 002 | f |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| N080UNF | P1 | 1.25 | 1.27 | TNMPUN0B5 | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f |
| o.- | P1 | 1.25 | 1.27 | TNMPUN0B1 | 1.5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f |
| P1 | 1.55 | 1.58 | TNMPUN1C5 | 5P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 3 | 005 | f | |
| No.1-72UNF | P1 | 1.55 | 1.58 | TNMPUN1C1 | 1.5P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 3 | 005 | f |
| P1 | 1.85 | 1.87 | TNMPUN2D5 | 5P | 42 | 8.1 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| No.2-64UNF | P1 | 1.85 | 1.87 | TNMPUN2D1 | 1.5P | 42 | 8.1 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f |
| NNF | P1 | 2.1 | 2.15 | TNMPUN3E5 | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f |
| o.3-56U | P1 | 2.1 | 2.15 | TNMPUN3E1 | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f |
| P1 | 2.4 | 2.41 | TNMPUN4F5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| No4-48UNF | P1 | 2.4 | 2.41 | TNMPUN4F1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f |
| . | P3(P1+30) | 2.4 | 2.41 | TNMRUN4F5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f |
| P3(P1+30) | 2.4 | 2.41 | TNMRUN4F1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P1 | 2.7 | 2.69 | TNMPUN5G5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P1 | 2.7 | 2.69 | TNMPUN5G1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.5-44UNF | P3(P1+30) | 2.7 | 2.69 | TNMRUN5G5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| P3(P1+30) | 2.7 | 2.69 | TNMRUN5G1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P2 | 2.9 | 2.97 | TNMQUN6H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| N640UNF | P2 | 2.9 | 2.97 | TNMQUN6H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| o.- | P3(P2+15) | 2.9 | 2.97 | TNMRUN6H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| P3(P2+15) | 2.9 | 2.97 | TNMRUN6H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f |
