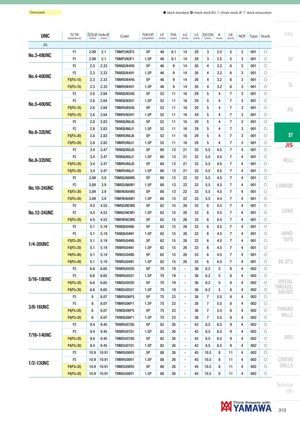

| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| N4NC | P1 | 2.09 | 2.1 | TNMPUN3F5 | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| o.3-8U | P1 | 2.09 | 2.1 | TNMPUN3F1 | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | SP |
| P2 | 2.3 | 2.33 | TNMQUN4H5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| P2 | 2.3 | 2.33 | TNMQUN4H1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| No.4-40UNC | P3(P2+15) | 2.3 | 2.33 | TNMRUN4H5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P3(P2+15) | 2.3 | 2.33 | TNMRUN4H1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | SL | |
| P2 | 2.6 | 2.64 | TNMQUN5H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| No.5-40UNC | P2 | 2.6 | 2.64 | TNMQUN5H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P3(P2+15) | 2.6 | 2.64 | TNMRUN5H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | PO | |
| P3(P2+15) | 2.6 | 2.64 | TNMRUN5H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| P2 | 2.8 | 2.83 | TNMQUN6J5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| P2 | 2.8 | 2.83 | TNMQUN6J1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| No.6-32UNC | P3(P2+20) | 2.8 | 2.83 | TNMRUN6J5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ST |
| P3(P2+20) | 2.8 | 2.83 | TNMRUN6J1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | JIS | |
| P2 | 3.4 | 3.47 | TNMQUN8J5 | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| N8-32UNC | P2 | 3.4 | 3.47 | TNMQUN8J1 | 1.5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ROLL |
| o. | P3(P2+20) | 3.4 | 3.47 | TNMRUN8J5 | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| P3(P2+20) | 3.4 | 3.47 | TNMRUN8J1 | 1.5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| P2 | 3.89 | 3.9 | TNMQUNAM5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| No10-24UNC | P2 | 3.89 | 3.9 | TNMQUNAM1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | CARBIDE |
| . | P3(P2+20) | 3.89 | 3.9 | TNMRUNAM5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| P3(P2+20) | 3.89 | 3.9 | TNMRUNAM1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| P2 | 4.5 | 4.53 | TNMQUNCM5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| No.12-24UNC | P2 | 4.5 | 4.53 | TNMQUNCM1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | LONG |
| P3(P2+20) | 4.5 | 4.53 | TNMRUNCM5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| P2 | 5.1 | 5.19 | TNMQU04N5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| P2 | 5.1 | 5.19 | TNMQU04N1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | HAND | |
| P3(P2+20) | 5.1 | 5.19 | TNMRU04N5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | TAPS | |
| 1/4-20UNC | P3(P2+20) | 5.1 | 5.19 | TNMRU04N1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | |
| P4(P2+40) | 5.1 | 5.19 | TNMSU04N5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| P4(P2+40) | 5.1 | 5.19 | TNMSU04N1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | EG (STI) | |
| P3 | 6.6 | 6.65 | TNMRU05O5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | ||
| P3 | 6.6 | 6.65 | TNMRU05O1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | ||
| 5/16-18UNC | SPECIAL | |||||||||||||||
| P4(P3+20) | 6.6 | 6.65 | TNMSU05O5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | ||
| P4(P3+20) | 6.6 | 6.65 | TNMSU05O1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | THREADS, GAUGES | |
| P3 | 8 | 8.07 | TNMRU06P5 | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | ||
| P3 | 8 | 8.07 | TNMRU06P1 | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | ||
| 3/8-16UNC | P4(P3+20) | 8 | 8.07 | TNMSU06P5 | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | THREAD |
| MILLS | ||||||||||||||||
| P4(P3+20) | 8 | 8.07 | TNMSU06P1 | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | ||
| P3 | 9.4 | 9.45 | TNMRU07Q5 | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | ||
| P3 | 9.4 | 9.45 | TNMRU07Q1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | ||
| 7/16-14UNC | P4(P3+20) | 9.4 | 9.45 | TNMSU07Q5 | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | DIES |
| P4(P3+20) | 9.4 | 9.45 | TNMSU07Q1 | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | ||
| P3 | 10.9 | 10.91 | TNMRU08R5 | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | ||
| P3 | 10.9 | 10.91 | TNMRU08R1 | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | CENTER | |
| 1/2-13UNC | P4(P3+20) | 10.9 | 10.91 | TNMSU08R5 | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | DRILLS |
| P4(P3+20) | 10.9 | 10.91 | TNMSU08R1 | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f |
