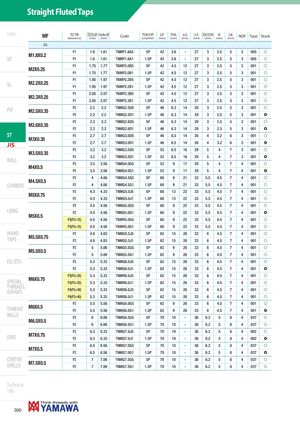

Общий каталог Yamawa 2021 - страница 299
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NO | F Type | Stock |
| JIS | ||||||||||||||||
| MX | P1 | 1.6 | 1.61 | TNMP1.8A5 | 5P | 42 | 3.6 | - | 27 | 3 | 2.5 | 5 | 3 | 005 | f | |
| SP | 1.80.2 | P1 | 1.6 | 1.61 | TNMP1.8A1 | 1.5P | 42 | 3.6 | - | 27 | 3 | 2.5 | 5 | 3 | 005 | f |
| P1 | 1.75 | 1.77 | TNMP2.0B5 | 5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M2X0.25 | P1 | 1.75 | 1.77 | TNMP2.0B1 | 1.5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| M22X025 | P1 | 1.95 | 1.97 | TNMP2.2B5 | 5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| SL | .. | P1 | 1.95 | 1.97 | TNMP2.2B1 | 1.5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f |
| M23X025 | P1 | 2.05 | 2.07 | TNMP2.3B5 | 5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| .. | P1 | 2.05 | 2.07 | TNMP2.3B1 | 1.5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| PO | M25X035 | P2 | 2.2 | 2.2 | TNMQ2.5D5 | 5P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f |
| .. | P2 | 2.2 | 2.2 | TNMQ2.5D1 | 1.5P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | ) | |
| P2 | 2.3 | 2.3 | TNMQ2.6D5 | 5P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M2.6X0.35 | P2 | 2.3 | 2.3 | TNMQ2.6D1 | 1.5P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | ) | |
| ST | M3X03 | P2 | 2.7 | 2.7 | TNMQ3.0D5 | 5P | 46 | 6.5 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f |
| JIS | .5 | P2 | 2.7 | 2.7 | TNMQ3.0D1 | 1.5P | 46 | 6.5 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | ) |
| P2 | 3.2 | 3.2 | TNMQ3.5D5 | 5P | 52 | 6.5 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| ROLL | M3.5X0.35 | P2 | 3.2 | 3.2 | TNMQ3.5D1 | 1.5P | 52 | 6.5 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | ) |
| M4X05 | P2 | 3.5 | 3.56 | TNMQ4.0G5 | 5P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | |
| . | P2 | 3.5 | 3.56 | TNMQ4.0G1 | 1.5P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | ) | |
| M45X05 | P2 | 4 | 4.06 | TNMQ4.5G5 | 5P | 60 | 9 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| CARBIDE | .. | P2 | 4 | 4.06 | TNMQ4.5G1 | 1.5P | 60 | 9 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f |
| P2 | 4.3 | 4.33 | TNMQ5.0J5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| M5X0.75 | P2 | 4.3 | 4.33 | TNMQ5.0J1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| P2 | 4.5 | 4.56 | TNMQ5.0G5 | 5P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| LONG | P2 | 4.5 | 4.56 | TNMQ5.0G1 | 1.5P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | ) | |
| M5X0.5 | P3(P2+15) | 4.5 | 4.56 | TNMR5.0G5 | 5P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| P3(P2+15) | 4.5 | 4.56 | TNMR5.0G1 | 1.5P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| HAND | P2 | 4.8 | 4.83 | TNMQ5.5J5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | |
| TAPS | M5.5X0.75 | P2 | 4.8 | 4.83 | TNMQ5.5J1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f |
| P2 | 5 | 5.06 | TNMQ5.5G5 | 5P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| M5.5X0.5 | P2 | 5 | 5.06 | TNMQ5.5G1 | 1.5P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | |
| EG (STI) | P2 | 5.3 | 5.33 | TNMQ6.0J5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | |
| P2 | 5.3 | 5.33 | TNMQ6.0J1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | ) | ||
| P3(P2+20) | 5.3 | 5.33 | TNMR6.0J5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| SPECIAL | M6X0.75 | P3(P2+20) | 5.3 | 5.33 | TNMR6.0J1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f |
| THREADS, GAUGES | P4(P2+40) | 5.3 | 5.33 | TNMS6.0J5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | |
| P4(P2+40) | 5.3 | 5.33 | TNMS6.0J1 | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| P2 | 5.5 | 5.56 | TNMQ6.0G5 | 5P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | ||
| THREAD | M6X0.5 | P2 | 5.5 | 5.56 | TNMQ6.0G1 | 1.5P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | ) |
| MILLS | MX | P2 | 6 | 6.06 | TNMQ6.5G5 | 5P | 70 | 10 | - | 36 | 6.2 | 5 | 8 | 4 | 037 | f |
| 6.50.5 | P2 | 6 | 6.06 | TNMQ6.5G1 | 1.5P | 70 | 10 | - | 36 | 6.2 | 5 | 8 | 4 | 037 | f | |
| P2 | 6.3 | 6.33 | TNMQ7.0J5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | f | ||
| DIES | M7X0.75 | |||||||||||||||
| P2 | 6.3 | 6.33 | TNMQ7.0J1 | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 4 | 002 | ) | ||
| P2 | 6.5 | 6.56 | TNMQ7.0G5 | 5P | 70 | 10 | - | 36 | 6.2 | 5 | 8 | 4 | 037 | f | ||
| M7X0.5 | P2 | 6.5 | 6.56 | TNMQ7.0G1 | 1.5P | 70 | 10 | - | 36 | 6.2 | 5 | 8 | 4 | 037 | ) | |
| CENTER | P2 | 7 | 7.06 | TNMQ7.5G5 | 5P | 70 | 10 | - | 36 | 6.2 | 5 | 8 | 4 | 037 | f | |
| DRILLS | M7.5X0.5 | P2 | 7 | 7.06 | TNMQ7.5G1 | 1.5P | 70 | 10 | - | 36 | 6.2 | 5 | 8 | 4 | 037 | f |
