Каталоги Yamawa твердосплавные метчики для закаленной стали

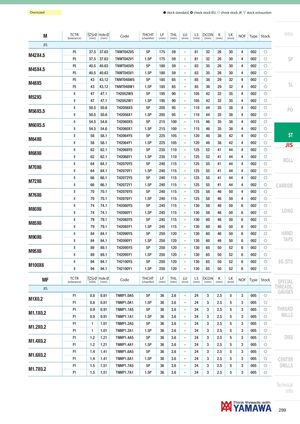

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| P5 | 37.5 | 37.63 | TNMT042V5 | 5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f | ||
| M42X4.5 | P5 | 37.5 | 37.63 | TNMT042V1 | 1.5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f | SP |
| M45X45 | P5 | 40.5 | 40.63 | TNMT045V5 | 5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | |
| . | P5 | 40.5 | 40.63 | TNMT045V1 | 1.5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | |
| M48X5 | P5 | 43 | 43.12 | TNMT048W5 | 5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f | |
| P5 | 43 | 43.12 | TNMT048W1 | 1.5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f | SL | |
| M52X5 | II | 47 | 47.1 | TH2052W5 | 5P | 195 | 90 | - | 105 | 42 | 32 | 35 | 4 | 002 | f | |
| II | 47 | 47.1 | TH2052W1 | 1.5P | 195 | 90 | - | 105 | 42 | 32 | 35 | 4 | 002 | f | ||
| M56X55 | II | 50.5 | 50.6 | TH2056X5 | 5P | 205 | 95 | - | 110 | 44 | 35 | 38 | 4 | 002 | f | PO |
| . | II | 50.5 | 50.6 | TH2056X1 | 1.5P | 205 | 95 | - | 110 | 44 | 35 | 38 | 4 | 002 | f | |
| MX | II | 54.5 | 54.6 | TH2060X5 | 5P | 215 | 100 | - | 115 | 46 | 35 | 38 | 4 | 002 | f | |
| 605.5 | II | 54.5 | 54.6 | TH2060X1 | 1.5P | 215 | 100 | - | 115 | 46 | 35 | 38 | 4 | 002 | f | |
| M64X6 | II | 58 | 58.1 | TH2064Y5 | 5P | 225 | 105 | - | 120 | 48 | 38 | 42 | 4 | 002 | f | ST |
| II | 58 | 58.1 | TH2064Y1 | 1.5P | 225 | 105 | - | 120 | 48 | 38 | 42 | 4 | 002 | f | JIS | |
| II | 62 | 62.1 | TH2068Y5 | 5P | 235 | 110 | - | 125 | 52 | 41 | 44 | 4 | 002 | f | ||
| M68X6 | II | 62 | 62.1 | TH2068Y1 | 1.5P | 235 | 110 | - | 125 | 52 | 41 | 44 | 4 | 002 | f | |
| II | 64 | 64.1 | TH2070Y5 | 5P | 240 | 115 | - | 125 | 55 | 41 | 44 | 4 | 002 | f | ROLL | |
| M70X6 | II | 64 | 64.1 | TH2070Y1 | 1.5P | 240 | 115 | - | 125 | 55 | 41 | 44 | 4 | 002 | f | |
| II | 66 | 66.1 | TH2072Y5 | 5P | 240 | 115 | - | 125 | 55 | 41 | 44 | 4 | 002 | f | ||
| M72X6 | II | 66 | 66.1 | TH2072Y1 | 1.5P | 240 | 115 | - | 125 | 55 | 41 | 44 | 4 | 002 | f | CARBIDE |
| II | 70 | 70.1 | TH2076Y5 | 5P | 240 | 115 | - | 125 | 58 | 46 | 50 | 4 | 002 | f | ||
| M76X6 | II | 70 | 70.1 | TH2076Y1 | 1.5P | 240 | 115 | - | 125 | 58 | 46 | 50 | 4 | 002 | f | |
| II | 74 | 74.1 | TH2080Y5 | 5P | 245 | 115 | - | 130 | 58 | 46 | 50 | 6 | 002 | f | ||
| M80X6 | II | 74 | 74.1 | TH2080Y1 | 1.5P | 245 | 115 | - | 130 | 58 | 46 | 50 | 6 | 002 | f | LONG |
| II | 79 | 79.1 | TH2085Y5 | 5P | 245 | 115 | - | 130 | 60 | 46 | 50 | 6 | 002 | f | ||
| M85X6 | II | 79 | 79.1 | TH2085Y1 | 1.5P | 245 | 115 | - | 130 | 60 | 46 | 50 | 6 | 002 | f | |
| II | 84 | 84.1 | TH2090Y5 | 5P | 250 | 120 | - | 130 | 60 | 46 | 50 | 6 | 002 | f | HAND | |
| M90X6 | II | 84 | 84.1 | TH2090Y1 | 1.5P | 250 | 120 | - | 130 | 60 | 46 | 50 | 6 | 002 | f | TAPS |
| II | 89 | 89.1 | TH2095Y5 | 5P | 250 | 120 | - | 130 | 65 | 50 | 52 | 6 | 002 | f | ||
| M95X6 | II | 89 | 89.1 | TH2095Y1 | 1.5P | 250 | 120 | - | 130 | 65 | 50 | 52 | 6 | 002 | f | |
| II | 94 | 94.1 | TH2100Y5 | 5P | 250 | 120 | - | 130 | 65 | 50 | 52 | 6 | 002 | f | EG (STI) | |
| M100X6 | II | 94 | 94.1 | TH2100Y1 | 1.5P | 250 | 120 | - | 130 | 65 | 50 | 52 | 6 | 002 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SPECIAL |
| JIS | THREADS, GAUGES | |||||||||||||||
| P1 | 0.8 | 0.81 | TNMP1.0A5 | 5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| M1X0.2 | P1 | 0.8 | 0.81 | TNMP1.0A1 | 1.5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | |
| P1 | 0.9 | 0.91 | TNMP1.1A5 | 5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | THREAD | |
| M1.1X0.2 | P1 | 0.9 | 0.91 | TNMP1.1A1 | 1.5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | MILLS |
| P1 | 1 | 1.01 | TNMP1.2A5 | 5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| M1.2X0.2 | ||||||||||||||||
| P1 | 1 | 1.01 | TNMP1.2A1 | 1.5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| P1 | 1.2 | 1.21 | TNMP1.4A5 | 5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | DIES | |
| M1.4X0.2 | P1 | 1.2 | 1.21 | TNMP1.4A1 | 1.5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | |
| P1 | 1.4 | 1.41 | TNMP1.6A5 | 5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| M1.6X0.2 | P1 | 1.4 | 1.41 | TNMP1.6A1 | 1.5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | CENTER |
| P1 | 1.5 | 1.51 | TNMP1.7A5 | 5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | DRILLS | |
| M1.7X0.2 | P1 | 1.5 | 1.51 | TNMP1.7A1 | 1.5P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f |
