Каталоги Yamawa твердосплавные метчики для закаленной стали

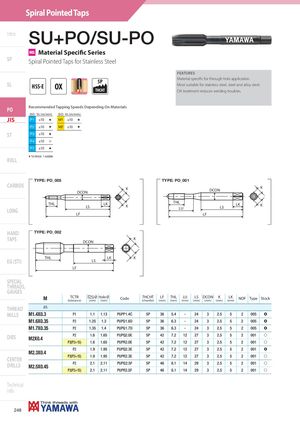

SU+PO/SU-PO
MS Material Specifi c Series
SP Spiral Pointed Taps for Stainless Steel
5P
SL HSS-E OX
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| JIS | P1 | ≤10 | H | M1 | ≤10 | H |
| P2 | ≤10 | H | M2 | ≤10 | H | |
| ST | P3 | ≤10 | H | |||
| P4 | ≤10 | I | ||||
| P7 | ≤10 | H |
H 1st choice I suitable ROLL
FEATURES Material specifi c for through hole application. Most suitable for stainless steel, steel and alloy steel. OX treatment reduces welding troubles.
JIS-SU+PO/SU-PO
TYPE: PO_005 TYPE: PO_001
CARBIDE
K K DCON DCON THL
THL LK LK K
LS K LS
LONG LU LF LF
HAND TYPE: PO_002 TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M1.4X0.3 | P1 | 1.1 | 1.13 | PUPP1.4C | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) |
| M1.6X0.35 | P2 | 1.25 | 1.3 | PUPQ1.6D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) |
| M1.7X0.35 | P2 | 1.35 | 1.4 | PUPQ1.7D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) |
| M2X04 | P2 | 1.6 | 1.65 | PUPQ2.0E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
| . | P3(P2+15) | 1.6 | 1.65 | PUPR2.0E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
| M23X04 | P2 | 1.9 | 1.95 | PUPQ2.3E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | ) |
| .. | P3(P2+15) | 1.9 | 1.95 | PUPR2.3E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
| M25X045 | P2 | 2.1 | 2.11 | PUPQ2.5F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f |
| .. | P3(P2+15) | 2.1 | 2.11 | PUPR2.5F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f |
