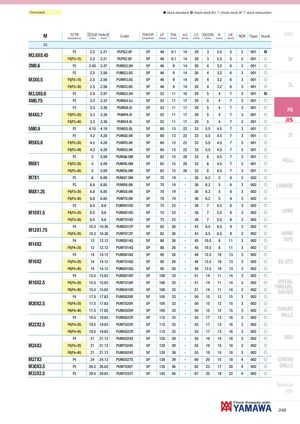

Общий каталог Yamawa 2021 - страница 248
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| P2 | 2.2 | 2.21 | PUPQ2.6F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | ) | ||
| M2.6X0.45 | P3(P2+15) | 2.2 | 2.21 | PUPR2.6F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | SP |
| 3M0.6 | P2 | 2.45 | 2.47 | PUMQ3.0H | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P2 | 2.5 | 2.56 | PUMQ3.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| M3X0.5 | P3(P2+15) | 2.5 | 2.56 | PUMR3.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P4(P2+30) | 2.5 | 2.56 | PUMS3.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | SL | |
| M3.5X0.6 | P2 | 2.9 | 2.97 | PUMQ3.5H | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | ) | |
| 4M0.75 | P2 | 3.3 | 3.33 | PUMQ4.0J | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P2 | 3.3 | 3.38 | PUMQ4.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | PO | |
| M4X0.7 | P3(P2+20) | 3.3 | 3.38 | PUMR4.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P4(P2+40) | 3.3 | 3.38 | PUMS4.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | JIS | |
| 5M0.9 | P2 | 4.15 | 4.19 | PUMQ5.0L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P2 | 4.2 | 4.28 | PUMQ5.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ST | |
| M5X0.8 | P3(P2+20) | 4.2 | 4.28 | PUMR5.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P4(P2+40) | 4.2 | 4.28 | PUMS5.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| P2 | 5 | 5.09 | PUMQ6.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| M6X1 | P3(P2+20) | 5 | 5.09 | PUMR6.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ROLL |
| P4(P2+40) | 5 | 5.09 | PUMS6.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| M7X1 | P2 | 6 | 6.09 | PUMQ7.0M | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| P3 | 6.8 | 6.85 | PUMR8.0N | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | CARBIDE | |
| M8X1.25 | P4(P3+20) | 6.8 | 6.85 | PUMS8.0N | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| P5(P3+40) | 6.8 | 6.85 | PUMT8.0N | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | ||
| P3 | 8.5 | 8.6 | PUMR010O | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | ||
| M10X1.5 | P4(P3+20) | 8.5 | 8.6 | PUMS010O | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | LONG |
| P5(P3+40) | 8.5 | 8.6 | PUMT010O | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | ||
| M12X175 | P4 | 10.3 | 10.36 | PUMS012P | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| . | P5(P4+20) | 10.3 | 10.36 | PUMT012P | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | HAND |
| P4 | 12 | 12.12 | PUMS014Q | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | TAPS | |
| M14X2 | P5(P4+20) | 12 | 12.12 | PUMT014Q | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | |
| P4 | 14 | 14.12 | PUMS016Q | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | ||
| M16X2 | P5(P4+20) | 14 | 14.12 | PUMT016Q | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | EG (STI) |
| P6(P4+40) | 14 | 14.12 | PUMU016Q | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | ||
| P4 | 15.5 | 15.63 | PUMS018R | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f | ||
| M18X2.5 | P5(P4+20) | 15.5 | 15.63 | PUMT018R | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f | SPECIAL |
| P6(P4+40) | 15.5 | 15.63 | PUMU018R | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f | THREADS, GAUGES | |
| P4 | 17.5 | 17.63 | PUMS020R | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | ||
| M20X2.5 | P5(P4+20) | 17.5 | 17.63 | PUMT020R | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | |
| P6(P4+40) | 17.5 | 17.63 | PUMU020R | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | THREAD | |
| P4 | 19.5 | 19.63 | PUMS022R | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | MILLS | |
| M22X2.5 | P5(P4+20) | 19.5 | 19.63 | PUMT022R | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | |
| P6(P4+40) | 19.5 | 19.63 | PUMU022R | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | ||
| P4 | 21 | 21.13 | PUMS024S | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | DIES | |
| M24X3 | P5(P4+20) | 21 | 21.13 | PUMT024S | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | |
| P6(P4+40) | 21 | 21.13 | PUMU024S | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | ||
| M27X3 | P4 | 24 | 24.13 | PUMS027S | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | CENTER |
| M30X3.5 | P5 | 26.5 | 26.63 | PUMT030T | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | DRILLS |
| M33X3.5 | P5 | 29.5 | 29.63 | PUMT033T | 5P | 145 | 46 | - | 67 | 25 | 19 | 22 | 4 | 002 | f |
