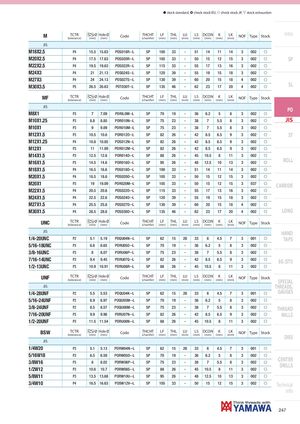

Общий каталог Yamawa 2021 - страница 246
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| M18X2.5 | P4 | 15.5 | 15.63 | POS018R--L | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f | |
| M20X2.5 | P4 | 17.5 | 17.63 | POS020R--L | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | SP |
| M22X2.5 | P4 | 19.5 | 19.63 | POS022R--L | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | |
| M24X3 | P4 | 21 | 21.13 | POS024S--L | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | |
| M27X3 | P4 | 24 | 24.13 | POS027S--L | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | |
| M30X3.5 | P5 | 26.5 | 26.63 | POT030T--L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | SL |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| M8X1 | P3 | 7 | 7.09 | POR8.0M--L | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | PO |
| M10X1.25 | P3 | 8.8 | 8.85 | POR010N--L | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | JIS |
| M10X1 | P3 | 9 | 9.09 | POR010M--L | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| M12X1.5 | P3 | 10.5 | 10.6 | POR012O--L | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ST |
| M12X1.25 | P4 | 10.8 | 10.85 | POS012N--L | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| M12X1 | P3 | 11 | 11.09 | POR012M--L | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| M14X1.5 | P3 | 12.5 | 12.6 | POR014O--L | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | |
| M16X1.5 | P3 | 14.5 | 14.6 | POR016O--L | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | ROLL |
| M18X1.5 | P4 | 16.5 | 16.6 | POS018O--L | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f | |
| M20X1.5 | P4 | 18.5 | 18.6 | POS020O--L | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | |
| M20X1 | P3 | 19 | 19.09 | POR020M--L | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 037 | f | CARBIDE |
| M22X1.5 | P4 | 20.5 | 20.6 | POS022O--L | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | |
| M24X1.5 | P4 | 22.5 | 22.6 | POS024O--L | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | |
| M27X1.5 | P4 | 25.5 | 25.6 | POS027O--L | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | |
| M30X1.5 | P4 | 28.5 | 28.6 | POS030O--L | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | LONG |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | HAND | |||||||||||||||
| 1/4-20UNC | P2 | 5.1 | 5.19 | POQU04N--L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | TAPS |
| 5/16-18UNC | P3 | 6.6 | 6.65 | PORU05O--L | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| 3/8-16UNC | P3 | 8 | 8.07 | PORU06P--L | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| 7/16-14UNC | P3 | 9.4 | 9.45 | PORU07Q--L | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | EG (STI) |
| 1/2-13UNC | P3 | 10.9 | 10.91 | PORU08R--L | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SPECIAL |
| JIS | THREADS, | |||||||||||||||
| 1/4-28UNF | P2 | 5.5 | 5.53 | POQU04K--L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | GAUGES |
| 5/16-24UNF | P2 | 6.9 | 6.97 | POQU05M--L | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| 3/8-24UNF | P2 | 8.5 | 8.57 | POQU06M--L | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | THREAD |
| 7/16-20UNF | P3 | 9.9 | 9.96 | PORU07N--L | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | MILLS |
| 1/2-20UNF | P3 | 11.5 | 11.54 | PORU08N--L | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | |
| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | DIES | |||||||||||||||
| 1/4W20 | P3 | 5.1 | 5.13 | PORW04N--L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 5/16W18 | P3 | 6.5 | 6.59 | PORW05O--L | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| 3/8W16 | P3 | 8 | 8.02 | PORW06P--L | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | CENTER |
| 1/2W12 | P3 | 10.6 | 10.7 | PORW08S--L | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | DRILLS |
| 5/8W11 | P3 | 13.5 | 13.68 | PORW10U--L | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| 3/4W10 | P4 | 16.5 | 16.63 | POSW12V--L | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | Technical |
