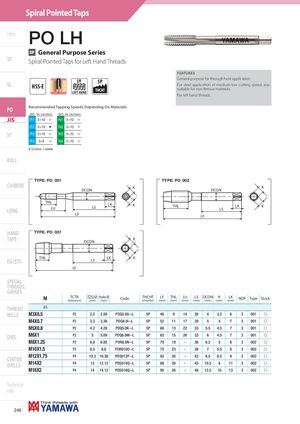

PO LH
GP General Purpose Series
SP Spiral Pointed Taps for Left Hand Threads
FEATURES LH General purpose for through hole application.
5P
SL HSS-E For steel application at medium-low cutting speed, also
THCHT suitable for non-ferrous materials. LEFT HAND For left hand threads. PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min)
| JIS | P1 | 5÷10 | I | N1 | 5÷10 | I |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷8 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL JIS-PO LH
TYPE: PO_001 TYPE: PO_002
CARBIDE
K K DCON DCON
THL LK K
LS THL LK K
LONG LU LS
LF LF
HAND TYPE: PO_037 TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M3X0.5 | P2 | 2.5 | 2.56 | POQ3.0G--L | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f |
| M4X0.7 | P2 | 3.3 | 3.38 | POQ4.0I--L | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| M5X0.8 | P2 | 4.2 | 4.28 | POQ5.0K--L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f |
| M6X1 | P2 | 5 | 5.09 | POQ6.0M--L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f |
| M8X1.25 | P3 | 6.8 | 6.85 | POR8.0N--L | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f |
| M10X1.5 | P3 | 8.5 | 8.6 | POR010O--L | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f |
| M12X1.75 | P4 | 10.3 | 10.36 | POS012P--L | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f |
| M14X2 | P4 | 12 | 12.12 | POS014Q--L | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f |
| M16X2 | P4 | 14 | 14.12 | POS016Q--L | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f |
