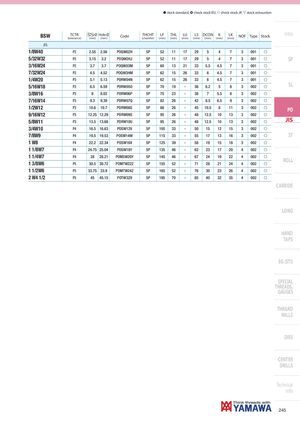

| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| 1/8W40 | P2 | 2.55 | 2.56 | POQW02H | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| 5/32W32 | P2 | 3.15 | 3.2 | POQW2HJ | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | SP |
| 3/16W24 | P2 | 3.7 | 3.7 | POQW03M | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| 7/32W24 | P2 | 4.5 | 4.52 | POQW3HM | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 1/4W20 | P3 | 5.1 | 5.13 | PORW04N | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 5/16W18 | P3 | 6.5 | 6.59 | PORW05O | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | SL |
| 3/8W16 | P3 | 8 | 8.02 | PORW06P | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| 7/16W14 | P3 | 9.3 | 9.39 | PORW07Q | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| 1/2W12 | P3 | 10.6 | 10.7 | PORW08S | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | PO |
| 9/16W12 | P3 | 12.25 | 12.29 | PORW09S | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| 5/8W11 | P3 | 13.5 | 13.68 | PORW10U | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | JIS |
| 3/4W10 | P4 | 16.5 | 16.63 | POSW12V | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | |
| 7/8W9 | P4 | 19.5 | 19.53 | POSW14W | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | ST |
| 1 W8 | P4 | 22.2 | 22.34 | POSW16X | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 3 | 002 | f | |
| 1 1/8W7 | P4 | 24.75 | 25.04 | POSW18Y | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| 1 1/4W7 | P4 | 28 | 28.21 | POMSW20Y | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | ROLL |
| 1 3/8W6 | P5 | 30.5 | 30.72 | POMTW22Z | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| 1 1/2W6 | P5 | 33.75 | 33.9 | POMTW24Z | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f | |
| 2 W4 1/2 | P5 | 45 | 45.15 | POTW329 | 5P | 195 | 70 | - | 85 | 40 | 32 | 35 | 4 | 002 | f |
CARBIDE
LONG
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
