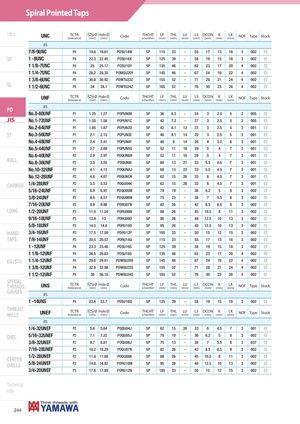

Общий каталог Yamawa 2021 - страница 243
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| 7/8-9UNC | P4 | 19.6 | 19.61 | POSU14W | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | |
| SP | 1 -8UNC | P4 | 22.3 | 22.45 | POSU16X | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 3 | 002 | f |
| 1 1/8-7UNC | P4 | 25 | 25.17 | POSU18Y | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| 1 1/4-7UNC | P4 | 28.2 | 28.35 | POMSU20Y | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f | |
| 1 3/8-6UNC | P5 | 30.8 | 30.92 | POMTU22Z | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| SL | 1 1/2-6UNC | P5 | 34 | 34.1 | POMTU24Z | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| PO | JIS | |||||||||||||||
| No.0-80UNF | P1 | 1.25 | 1.27 | POPUN0B | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | f | |
| JIS | No.1-72UNF | P1 | 1.55 | 1.58 | POPUN1C | 5P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 2 | 005 | f |
| No.2-64UNF | P1 | 1.85 | 1.87 | POPUN2D | 5P | 42 | 8.1 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| ST | No.3-56UNF | P1 | 2.1 | 2.15 | POPUN3E | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f |
| No.4-48UNF | P1 | 2.4 | 2.41 | POPUN4F | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| No.5-44UNF | P1 | 2.7 | 2.69 | POPUN5G | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.6-40UNF | P2 | 2.9 | 2.97 | POQUN6H | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| ROLL | No.8-36UNF | P2 | 3.5 | 3.55 | POQUN8I | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f |
| No.10-32UNF | P2 | 4.1 | 4.12 | POQUNAJ | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| No.12-28UNF | P2 | 4.6 | 4.67 | POQUNCK | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| CARBIDE | 1/4-28UNF | P2 | 5.5 | 5.53 | POQU04K | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f |
| 5/16-24UNF | P2 | 6.9 | 6.97 | POQU05M | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| 3/8-24UNF | P2 | 8.5 | 8.57 | POQU06M | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| 7/16-20UNF | P3 | 9.9 | 9.96 | PORU07N | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| LONG | 1/2-20UNF | P3 | 11.5 | 11.54 | PORU08N | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f |
| 9/16-18UNF | P3 | 12.9 | 13 | PORU09O | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| 5/8-18UNF | P3 | 14.5 | 14.6 | PORU10O | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | |
| HAND | 3/4-16UNF | P3 | 17.5 | 17.59 | PORU12P | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f |
| TAPS | 7/8-14UNF | P3 | 20.5 | 20.57 | PORU14Q | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f |
| 1 -12UNF | P4 | 23.3 | 23.46 | POSU16S | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 3 | 002 | f | |
| 1 1/8-12UNF | P4 | 26.5 | 26.63 | POSU18S | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f | |
| EG (STI) | 1 1/4-12UNF | P4 | 29.6 | 29.81 | POMSU20S | 5P | 145 | 46 | - | 67 | 24 | 19 | 22 | 4 | 002 | f |
| 1 3/8-12UNF | P4 | 32.8 | 32.98 | POMSU22S | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| 1 1/2-12UNF | P4 | 36 | 36.16 | POMSU24S | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f | |
| SPECIAL THREADS, | UNS | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| GAUGES | JIS | |||||||||||||||
| 1 -14UNS | P4 | 23.6 | 23.7 | POSU16Q | 5P | 125 | 39 | - | 58 | 19 | 15 | 18 | 3 | 002 | f | |
| THREAD MILLS | UNEF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| 1/4-32UNEF | P2 | 5.6 | 5.64 | POQU04J | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 5/16-32UNEF | P2 | 7.1 | 7.22 | POQU05J | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| DIES | 3/8-32UNEF | P2 | 8.7 | 8.81 | POQU06J | 5P | 75 | 13 | - | 38 | 7 | 5.5 | 8 | 3 | 037 | f |
| 7/16-28UNEF | P2 | 10.2 | 10.29 | POQU07K | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| CENTER | 1/2-28UNEF | P2 | 11.8 | 11.88 | POQU08K | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f |
| DRILLS | 5/8-24UNEF | P3 | 14.8 | 14.92 | PORU10M | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f |
| 3/4-20UNEF | P3 | 17.8 | 17.89 | PORU12N | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f |
