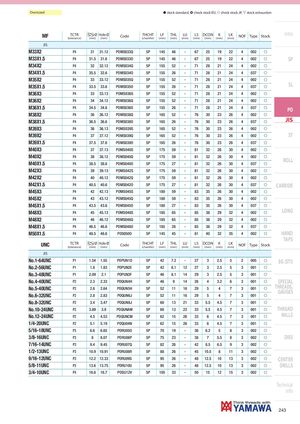

Общий каталог Yamawa 2021 - страница 242

• Copertina
• Capitoli web
• Parte finale web

Oversized h stock standard, ) check stock EU, f check stock JP, m stock exhaustion MF TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock Intro JIS M33X2 P4 31 31.12 POMS033Q 5P 145 46 - 67 25 19 22 4 002 f M33X1.5 P4 31.5 31.6 POMS033O 5P 145 46 - 67 25 19 22 4 002 f SP M34X2 P4 32 32.12 POMS034Q 5P 155 52 - 71 28 21 24 4 002 f M34X1.5 P4 35.5 32.6 POMS034O 5P 155 26 - 71 28 21 24 4 037 f M35X2 P4 33 33.12 POMS035Q 5P 155 52 - 71 28 21 24 4 002 f M35X1.5 P4 33.5 33.6 POMS035O 5P 155 26 - 71 28 21 24 4 037 f SL M36X3 P4 33 33.13 POMS036S 5P 155 52 - 71 28 21 24 4 002 f M36X2 P4 34 34.12 POMS036Q 5P 155 52 - 71 28 21 24 4 002 f M36X1.5 P4 34.5 34.6 POMS036O 5P 155 26 - 71 28 21 24 4 037 f PO M38X2 P4 36 36.12 POMS038Q 5P 165 52 - 76 30 23 26 4 002 f M38X1.5 P4 36.5 36.6 POMS038O 5P 165 26 - 76 30 23 26 4 037 f JIS M39X3 P4 36 36.13 POMS039S 5P 165 52 - 76 30 23 26 4 002 f M39X2 P4 37 37.12 POMS039Q 5P 165 52 - 76 30 23 26 4 002 f ST M39X1.5 P4 37.5 37.6 POMS039O 5P 165 26 - 76 30 23 26 4 037 f M40X3 P4 37 37.13 POMS040S 5P 175 59 - 81 32 26 30 4 002 f M40X2M40X1.5 P4 38 38.12 POMS040Q 5P 175 59 - 81 32 26 30 4 002 fP438.538.6POMS040O5P17527-813226304037fROLL M42X3 P4 39 39.13 POMS042S 5P 175 59 - 81 32 26 30 4 002 f M42X2 P4 40 40.12 POMS042Q 5P 175 59 - 81 32 26 30 4 002 f M42X1.5 P4 40.5 40.6 POMS042O 5P 175 27 - 81 32 26 30 4 037 f CARBIDE M45X3 P4 42 42.13 POMS045S 5P 180 59 - 83 35 26 30 4 002 f M45X2 P4 43 43.12 POMS045Q 5P 180 59 - 83 35 26 30 4 002 f M45X1.5 P4 43.5 43.6 POMS045O 5P 180 27 - 83 35 26 30 4 037 f M48X3 P4 45 45.13 POMS048S 5P 185 65 - 85 38 29 32 4 002 f LONG M48X2 P4 46 46.12 POMS048Q 5P 185 65 - 85 38 29 32 4 002 f M48X1.5 P4 46.5 46.6 POMS048O 5P 185 28 - 85 38 29 32 4 037 f M50X1.5 P4 48.5 48.6 POS050O 5P 145 45 - 81 40 32 35 4 002 f HAND TAPS UNC TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock JIS No.1-64UNC P1 1.54 1.55 POPUN1D 5P 42 7.2 - 27 3 2.5 5 2 005 f EG (STI) No.2-56UNC P1 1.8 1.83 POPUN2E 5P 42 8.1 12 27 3 2.5 5 3 001 f No.3-48UNC P1 2.09 2.1 POPUN3F 5P 46 8.1 14 29 3 2.5 5 3 001 f No.4-40UNC P2 2.3 2.33 POQUN4H 5P 46 9 14 26 4 3.2 6 3 001 f SPECIAL No.5-40UNC P2 2.6 2.64 POQUN5H 5P 52 11 16 29 5 4 7 3 001 f THREADS,GAUGES No.6-32UNC P2 2.8 2.83 POQUN6J 5P 52 11 16 29 5 4 7 3 001 f No.8-32UNC P2 3.4 3.47 POQUN8J 5P 60 13 21 33 5.5 4.5 7 3 001 f No.10-24UNC P2 3.89 3.9 POQUNAM 5P 60 13 22 33 5.5 4.5 7 3 001 f THREAD No.12-24UNC P2 4.5 4.53 POQUNCM 5P 62 15 26 33 6 4.5 7 3 001 f MILLS 1/4-20UNC P2 5.1 5.19 POQU04N 5P 62 15 26 33 6 4.5 7 3 001 f 5/16-18UNC P3 6.6 6.65 PORU05O 5P 70 19 - 36 6.2 5 8 3 002 f 3/8-16UNC P3 8 8.07 PORU06P 5P 75 23 - 38 7 5.5 8 3 002 f DIES 7/16-14UNC P3 9.4 9.45 PORU07Q 5P 82 26 - 42 8.5 6.5 9 3 002 f 1/2-13UNC P3 10.9 10.91 PORU08R 5P 88 26 - 45 10.5 8 11 3 002 f 9/16-12UNC P3 12.2 12.33 PORU09S 5P 95 26 - 48 12.5 10 13 3 002 f CENTER 5/8-11UNC P3 13.6 13.75 PORU10U 5P 95 26 - 48 12.5 10 13 3 002 f DRILLS 3/4-10UNC P4 16.6 16.7 POSU12V 5P 105 33 - 50 15 12 15 3 002 f Technical info 243
