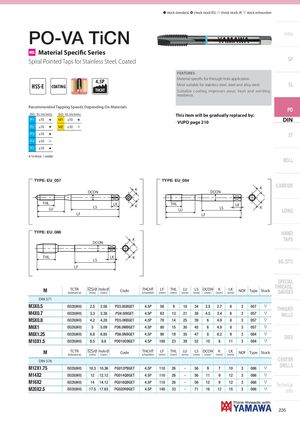

PO-VA TiCN
MS Material Specifi c Series
Spiral Pointed Taps for Stainless Steel, Coated SP
FEATURES Material specifi c for through hole application.
4.5P
| HSS-E | Most suitable for stainless steel, steel and alloy steel. | SL |
| COATING | ||
| THCHT Suitable coating improves wear, heat and welding | ||
| resistance. | ||
| Recommended Tapping Speeds Depending On Materials | PO | |
| ISO Vc (m/min) | ISO Vc (m/min) This item will be gradually replaced by: |
| P1 | ≤15 | H | M1 | ≤10 | DIN H |
| . VUPO page 210 | |||||
| P2 | ≤15 | H | M2 | ≤10 | I |
| P3 | ≤10 | H | ST | ||
| P4 | ≤10 | I | |||
| P7 | ≤10 | H |
H 1st choice I suitable ROLL DIN-PO-VA TiCN
TYPE: EU_057 TYPE: EU_084
CARBIDE
K K DCON DCON
| THL | LK | THL | ||
| K | LK |
LS LS K
LU LU LONG
LF LF
TYPE: EU_086 HAND K TAPS DCON
THL LK K
LS EG (STI) LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SPECIAL THREADS, GAUGES |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | PD3.0GBGET | 4.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | m | THREAD |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | PD4.0IBGET | 4.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | m | MILLS |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | PD5.0KBGET | 4.5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | m | |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | PD6.0MBGET | 4.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 057 | m | |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | PD8.0NBGET | 4.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | m | DIES |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | PD010OBGET | 4.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 084 | m | |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | CENTER | |||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | PG012PBGET | 4.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | m | DRILLS |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | PG014QBGET | 4.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | m | |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | PG016QBGET | 4.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | m | Technical |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | PG020RBGET | 4.5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 3 | 086 | m | info |
