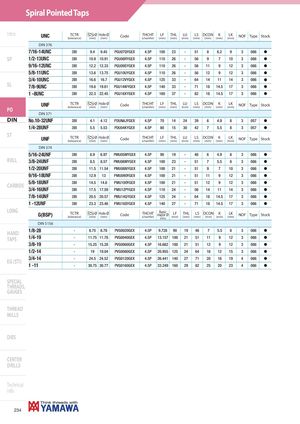

Общий каталог Yamawa 2021 - страница 233
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 376 | ||||||||||||||||
| 7/16-14UNC | 2BX | 9.4 | 9.45 | PGU07QYGEX | 4.5P | 100 | 23 | - | 51 | 8 | 6.2 | 9 | 3 | 086 | h | |
| SP | 1/2-13UNC | 2BX | 10.9 | 10.91 | PGU08RYGEX | 4.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | h |
| 9/16-12UNC | 2BX | 12.2 | 12.33 | PGU09SYGEX | 4.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | h | |
| 5/8-11UNC | 2BX | 13.6 | 13.75 | PGU10UYGEX | 4.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | h | |
| 3/4-10UNC | 2BX | 16.6 | 16.7 | PGU12VYGEX | 4.5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 3 | 086 | h | |
| SL | 7/8-9UNC | 2BX | 19.6 | 19.61 | PGU14WYGEX | 4.5P | 140 | 33 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | h |
| 1 -8UNC | 2BX | 22.3 | 22.45 | PGU16XYGEX | 4.5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 3 | 086 | h | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| PO | DIN 371 | |||||||||||||||
| DIN | No.10-32UNF | 2BX | 4.1 | 4.12 | PDUNAJYGEX | 4.5P | 70 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 057 | h |
| 1/4-28UNF | 2BX | 5.5 | 5.53 | PDU04KYGEX | 4.5P | 80 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 057 | h | |
| ST | UNF | TCTR l | Ø | Hole Ø | Code | THCHT hf | LF | THL | LU | LS | DCON | K | LK | NOF | Type | Stock |
| (toerance) | (mm) | (mm) | (camer) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ||||||
| DIN 374 | ||||||||||||||||
| 5/16-24UNF | 2BX | 6.9 | 6.97 | PMU05MYGEX | 4.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 086 | h | |
| ROLL | 3/8-24UNF | 2BX | 8.5 | 8.57 | PMU06MYGEX | 4.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 086 | h |
| 1/2-20UNF | 2BX | 11.5 | 11.54 | PMU08NYGEX | 4.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | h | |
| 9/16-18UNF | 2BX | 12.9 | 13 | PMU09OYGEX | 4.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 3 | 086 | h | |
| 5/8-18UNF | 2BX | 14.5 | 14.6 | PMU10OYGEX | 4.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 3 | 086 | h | |
| CARBIDE | 3/4-16UNF | 2BX | 17.5 | 17.59 | PMU12PYGEX | 4.5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 3 | 086 | h |
| 7/8-14UNF | 2BX | 20.5 | 20.57 | PMU14QYGEX | 4.5P | 125 | 24 | - | 64 | 18 | 14.5 | 17 | 3 | 086 | h | |
| 1 -12UNF | 2BX | 23.3 | 23.46 | PMU16SYGEX | 4.5P | 140 | 27 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | h | |
| LONG | G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 5156 | ||||||||||||||||
| 1/8-28 | - | 8.75 | 8.78 | PVG0020GEX | 4.5P | 9.728 | 90 | 19 | 46 | 7 | 5.5 | 8 | 3 | 086 | h | |
| HAND TAPS | 1/4-19 | - | 11.75 | 11.78 | PVG0040GEX | 4.5P | 13.157 | 100 | 21 | 51 | 11 | 9 | 12 | 3 | 086 | h |
| 3/8-19 | - | 15.25 | 15.28 | PVG0060GEX | 4.5P | 16.662 | 100 | 21 | 51 | 12 | 9 | 12 | 3 | 086 | h | |
| 1/2-14 | - | 19 | 19.04 | PVG0080GEX | 4.5P | 20.955 | 125 | 24 | 64 | 16 | 12 | 15 | 3 | 086 | h | |
| 3/4-14 | - | 24.5 | 24.52 | PVG0120GEX | 4.5P | 26.441 | 140 | 27 | 71 | 20 | 16 | 19 | 4 | 086 | h | |
| EG (STI) | 1 -11 | - | 30.75 | 30.77 | PVG0160GEX | 4.5P | 33.249 | 160 | 29 | 82 | 25 | 20 | 23 | 4 | 086 | h |
SPECIAL
THREADS,
