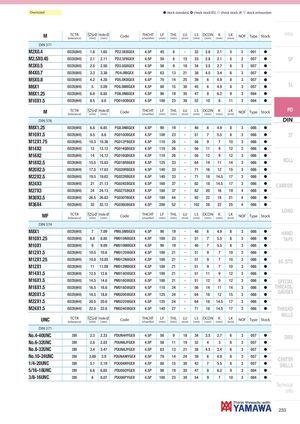

Общий каталог Yamawa 2021 - страница 232
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M2X0.4 | ISO2X(6HX) | 1.6 | 1.65 | PD2.0EBGEX | 4.5P | 45 | 8 | - | 32 | 2.8 | 2.1 | 5 | 2 | 001 | h | |
| M2.5X0.45 | ISO2X(6HX) | 2.1 | 2.11 | PD2.5FBGEX | 4.5P | 50 | 8 | 15 | 33 | 2.8 | 2.1 | 5 | 2 | 057 | h | SP |
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | PD3.0GBGEX | 4.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h | |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | PD4.0IBGEX | 4.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h | |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | PD5.0KBGEX | 4.5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | h | |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | PD6.0MBGEX | 4.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 057 | h | SL |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | PD8.0NBGEX | 4.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | PD010OBGEX | 4.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 084 | h | |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | PO |
| DIN 376 | DIN | |||||||||||||||
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | PG8.0NBGEX | 4.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 086 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | PG010OBGEX | 4.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 086 | h | ST |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | PG012PBGEX | 4.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | h | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | PG014QBGEX | 4.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | h | |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | PG016QBGEX | 4.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | h | |
| M18X2.5 | ISO2X(6HX) | 15.5 | 15.63 | PG018RBGEX | 4.5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 3 | 086 | h | ROLL |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | PG020RBGEX | 4.5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 3 | 086 | h | |
| M22X2.5 | ISO2X(6HX) | 19.5 | 19.63 | PG022RBGEX | 4.5P | 140 | 33 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | h | |
| M24X3 | ISO2X(6HX) | 21 | 21.13 | PG024SBGEX | 4.5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 3 | 086 | h | CARBIDE |
| M27X3 | ISO2X(6HX) | 24 | 24.13 | PG027SBGEX | 4.5P | 160 | 37 | - | 82 | 20 | 16 | 19 | 4 | 086 | h | |
| M30X3.5 | ISO2X(6HX) | 26.5 | 26.63 | PG030TBGEX | 4.5P | 180 | 44 | - | 92 | 22 | 18 | 21 | 4 | 086 | h | |
| M36X4 | ISO2X(6HX) | 32 | 32.12 | PG036UBGEX | 4.5P | 200 | 52 | - | 102 | 28 | 22 | 25 | 4 | 086 | h | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| DIN 374 | ||||||||||||||||
| M8X1 | ISO2X(6HX) | 7 | 7.09 | PM8.0MBGEX | 4.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 086 | h | HAND |
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | PM010NBGEX | 4.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 086 | h | TAPS |
| M10X1 | ISO2X(6HX) | 9 | 9.09 | PM010MBGEX | 4.5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 3 | 086 | h | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | PM012OBGEX | 4.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | h | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | PM012NBGEX | 4.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | h | EG (STI) |
| M12X1 | ISO2X(6HX) | 11 | 11.09 | PM012MBGEX | 4.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | h | |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | PM014OBGEX | 4.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 3 | 086 | h | |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | PM016OBGEX | 4.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 3 | 086 | h | SPECIAL |
| M18X1.5 | ISO2X(6HX) | 16.5 | 16.6 | PM018OBGEX | 4.5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 3 | 086 | h | THREADS, |
| M20X1.5 | ISO2X(6HX) | 18.5 | 18.6 | PM020OBGEX | 4.5P | 125 | 24 | - | 64 | 16 | 12 | 15 | 3 | 086 | h | GAUGES |
| M22X1.5 | ISO2X(6HX) | 20.5 | 20.6 | PM022OBGEX | 4.5P | 125 | 24 | - | 64 | 18 | 14.5 | 17 | 3 | 086 | h | |
| M24X1.5 | ISO2X(6HX) | 22.5 | 22.6 | PM024OBGEX | 4.5P | 140 | 27 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | h | THREAD |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | MILLS |
| DIN 371 | ||||||||||||||||
| No.4-40UNC | 2BX | 2.3 | 2.33 | PDUN4HYGEX | 4.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h | DIES |
| No.6-32UNC | 2BX | 2.8 | 2.83 | PDUN6JYGEX | 4.5P | 56 | 11 | 19 | 32 | 4 | 3 | 6 | 3 | 057 | h | |
| No.8-32UNC | 2BX | 3.4 | 3.47 | PDUN8JYGEX | 4.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h | |
| No.10-24UNC | 2BX | 3.89 | 3.9 | PDUNAMYGEX | 4.5P | 70 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 057 | h | |
| 1/4-20UNC | 2BX | 5.1 | 5.19 | PDU04NYGEX | 4.5P | 80 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 057 | h | CENTER DRILLS |
| 5/16-18UNC | 2BX | 6.6 | 6.65 | PDU05OYGEX | 4.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h | |
| 3/8-16UNC | 2BX | 8 | 8.07 | PDU06PYGEX | 4.5P | 100 | 23 | 39 | 54 | 9 | 7 | 10 | 3 | 084 | h |
