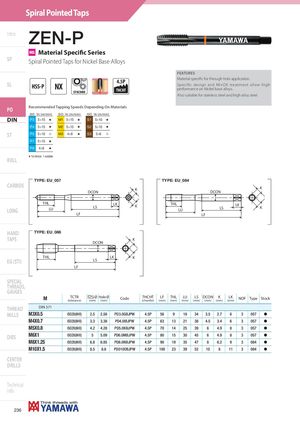

Общий каталог Yamawa 2021 - страница 235
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
ZEN-P
MS Material Specifi c Series
SP Spiral Pointed Taps for Nickel Base Alloys
4.5P
SL HSS-P NX
THCHT SYNCHRO
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| DIN | P3 | 5÷15 | H | M1 5÷15 | H | S1 | 5÷10 | H | |
| P4 | 5÷15 | H | M2 5÷15 | H | S2 | 5÷10 | H | ||
| ST | P5 | 5÷10 | I | M3 | 4÷8 | H | S3 | 3÷6 | I |
| P7 | 5÷15 | H | |||||||
| P8 | 4÷8 | H |
H 1st choice I suitable ROLL
FEATURES Material specifi c for through hole application. Specific design and NI+OX treatment allow high performance on Nickel base alloys. Also suitable for stainless steel and high alloy steel.
DIN-ZEN-P
TYPE: EU_057 TYPE: EU_084
CARBIDE
K K DCON DCON
| THL | LK | THL | ||
| K | LK |
LS LS K
LONG LU LU
LF LF
HAND TYPE: EU_086 TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | |||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | PD3.0GBJPW | 4.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | PD4.0IBJPW | 4.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | PD5.0KBJPW | 4.5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | h |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | PD6.0MBJPW | 4.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 057 | h |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | PD8.0NBJPW | 4.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | PD010OBJPW | 4.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 084 | h |
