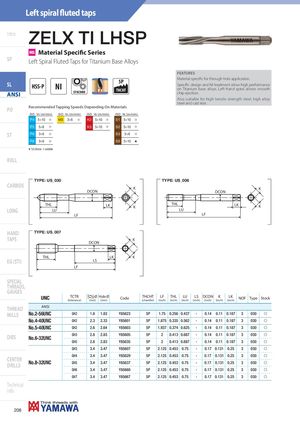

ZELX TI LHSP
MS Material Specifi c Series
SP Left Spiral Fluted Taps for Titanium Base Alloys
5P
| SL | HSS-P | NI | |||
| THCHT | |||||
| ANSI | SYNCHRO | ||||
| PO | Recommended Tapping Speeds Depending On Materials | ||||
| ISO Vc (m/min) | ISO Vc (m/min) | ISO Vc (m/min) | ISO Vc (m/min) |
| P4 | 5÷10 | I | M3 | 3÷6 | I | K2 | 5÷10 | I | S1 | 5÷10 | I | |
| P5 | 5÷8 | I | K3 | 5÷10 | I | S2 | 5÷10 | I | ||||
| ST | P6 | 3÷6 | I | S3 | 3÷6 | I | ||||||
| P8 | 3÷6 | I | S5 | 5÷10 | H |
H 1st choice I suitable ROLL
FEATURES Material specifi c for through hole application. Specifi c design and NI treatment allow high performance on Titanium base alloys. Left Hand spiral allows smooth chip ejection. Also suitable for high tensile strength steel, high alloy steel and cast iron.
ANSI-ZELX TI LHSP
TYPE: US_030 TYPE: US_006
CARBIDE
K K DCON DCON
| THL | LK | THL | LK | ||
| K | K |
LONG LU LU
LF LF
HAND TYPE: US_007 TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | |||||||||||||||
| No.2-56UNC | GH2 | 1.8 | 1.83 | Y85623 | 5P | 1.75 | 0.256 | 0.437 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f |
| No.4-40UNC | GH2 | 2.3 | 2.33 | Y85601 | 5P | 1.875 | 0.335 | 0.562 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f |
| No.5-40UNC | GH2 | 2.6 | 2.64 | Y85603 | 5P | 1.937 | 0.374 | 0.625 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f |
| N632UNC | GH3 | 2.8 | 2.83 | Y85605 | 5P | 2 | 0.413 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f |
| o.- | GH5 | 2.8 | 2.83 | Y85635 | 5P | 2 | 0.413 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f |
| GH3 | 3.4 | 3.47 | Y85607 | 5P | 2.125 | 0.453 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 030 | f | |
| GH4 | 3.4 | 3.47 | Y85629 | 5P | 2.125 | 0.453 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 030 | f | |
| No.8-32UNC | GH5 | 3.4 | 3.47 | Y85637 | 5P | 2.125 | 0.453 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 030 | f |
| GH6 | 3.4 | 3.47 | Y85660 | 5P | 2.125 | 0.453 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 030 | f | |
| GH7 | 3.4 | 3.47 | Y85667 | 5P | 2.125 | 0.453 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 030 | f |
