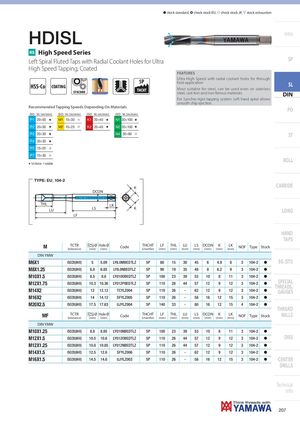

HDISL
HS High Speed Series
Left Spiral Fluted Taps with Radial Coolant Holes for Ultra SP
High Speed Tapping, Coated
FEATURES Ultra High Speed with radial coolant holes for through 5P hole application
HSS-Co SL
COATING
THCHT Most suitable for steel, can be used even on stainless
| SYNCHRO | steel, cast iron and non-ferrous materials. | DIN | ||
| For Synchro-rigid tapping system. Left hand spiral allows | ||||
| smooth chip ejection. | ||||
| Recommended Tapping Speeds Depending On Materials | PO |
| ISO Vc (m/min) | ISO Vc (m/min) | ISO Vc (m/min) | ISO Vc (m/min) | |||||
| P1 | 20÷50 | H | M1 15÷30 | I | K1 | 20÷40 | H | N1 30÷100 H |
| P2 | 20÷50 | H | M2 15÷25 | I | K2 | 20÷40 | H | N2 30÷100 H |
| P3 | 20÷30 | H | ST I 30÷60 N4 | |||||
| P4 | 20÷30 | H | ||||||
| P5 | 15÷25 | I | ||||||
| P7 | 15÷30 | I |
ROLL H 1st choice I suitable DIN-HDISL
TYPE: EU_104-2
DCON
THL
LK
CARBIDE
K
| M LU | TCTR (tolerance) LF | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG HAND TAPS |
| DIN YMW | ||||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | LY6.0MBEDTLZ | 5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 104-2 | h | EG (STI) |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | LY8.0NBEDTLZ | 5P | 90 | 19 | 35 | 48 | 8 | 6.2 | 9 | 3 | 104-2 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | LY010OBEDTLZ | 5P | 100 | 23 | 39 | 53 | 10 | 8 | 11 | 3 | 104-2 | h | |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | LY012PBEDTLZ | 5P | 110 | 26 | 44 | 57 | 12 | 9 | 12 | 3 | 104-2 | h | SPECIAL THREADS |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | TCYLZ004 | 5P | 110 | 26 | - | 62 | 12 | 9 | 12 | 3 | 104-2 | h | , GAUGES |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | SFYLZ005 | 5P | 110 | 26 | - | 58 | 16 | 12 | 15 | 3 | 104-2 | h | |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | UJYLZ004 | 5P | 140 | 33 | - | 80 | 16 | 12 | 15 | 4 | 104-2 | h | THREAD |
| MF | TCTR | Ø | Hole Ø | Code | THCHT | LF | THL | LU | LS | DCON | K | LK | NOF | Type | Stock | MILLS |
| (tolerance) | (mm) | (mm) | (chamfer) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ||||||
| DIN YMW | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | LY010NBEDTLZ | 5P | 100 | 23 | 39 | 53 | 10 | 8 | 11 | 3 | 104-2 | h | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | LY012OBEDTLZ | 5P | 110 | 26 | 44 | 57 | 12 | 9 | 12 | 3 | 104-2 | h | DIES |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | LY012NBEDTLZ | 5P | 110 | 26 | 44 | 57 | 12 | 9 | 12 | 3 | 104-2 | h | |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | SFYLZ006 | 5P | 110 | 26 | - | 62 | 12 | 9 | 12 | 3 | 104-2 | h | |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | UJYLZ003 | 5P | 110 | 26 | - | 58 | 16 | 12 | 15 | 3 | 104-2 | h | CENTER DRILLS |
