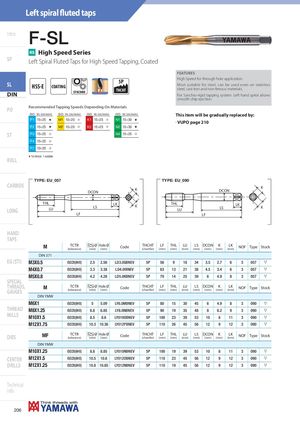

Общий каталог Yamawa 2021 - страница 205
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
F-SL
HS High Speed Series
SP Left Spiral Fluted Taps for High Speed Tapping, Coated
5P
SL HSS-E
COATING
THCHT DIN SYNCHRO PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 15÷25 | H | M1 10÷20 | I | K1 | 15÷25 | I | N1 | 15÷30 | H | |
| P2 | 15÷25 | H | M2 10÷20 | I | K2 | 15÷25 | I | N2 | 15÷30 | H | |
| ST | P3 | 15÷25 | I | N4 | 15÷25 | I | |||||
| P4 | 15÷25 | I | |||||||||
| P7 | 10÷20 | I |
H 1st choice I suitable ROLL
FEATURES High Speed for through hole application. Most suitable for steel, can be used even on stainless steel, cast iron and non-ferrous materials. For Synchro-rigid tapping system. Left hand spiral allows smooth chip ejection.
This item will be gradually replaced by: . VUPO page 210
DIN-F-SL
TYPE: EU_057 TYPE: EU_090
CARBIDE
K K DCON DCON
| THL | LK | THL | ||
| K | LK |
LS LS K
LONG LU LU
LF LF
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | |||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | LD3.0GBNEV | 5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | m |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | LD4.0IBNEV | 5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | m |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | LD5.0KBNEV | 5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | m |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | |||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | LY6.0MBNEV | 5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 090 | m |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | LY8.0NBNEV | 5P | 90 | 19 | 35 | 48 | 8 | 6.2 | 9 | 3 | 090 | m |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | LY010OBNEV | 5P | 100 | 23 | 39 | 53 | 10 | 8 | 11 | 3 | 090 | m |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | LY012PBNEV | 5P | 110 | 26 | 45 | 56 | 12 | 9 | 12 | 3 | 090 | m |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | |||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | LY010NBNEV | 5P | 100 | 19 | 39 | 53 | 10 | 8 | 11 | 3 | 090 | m |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | LY012OBNEV | 5P | 110 | 23 | 45 | 56 | 12 | 9 | 12 | 3 | 090 | m |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | LY012NBNEV | 5P | 110 | 19 | 45 | 56 | 12 | 9 | 12 | 3 | 090 | m |
