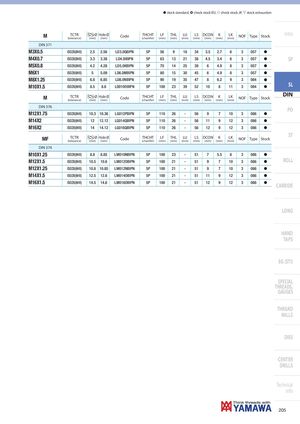

Общий каталог Yamawa 2021 - страница 204

• Copertina
• Capitoli web
• Parte finale web

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion M TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock Intro DIN 371 M3X0.5 ISO2X(6HX) 2.5 2.56 LD3.0GBIPN 5P 56 9 18 34 3.5 2.7 6 3 057 h M4X0.7 ISO2X(6HX) 3.3 3.38 LD4.0IBIPN 5P 63 13 21 38 4.5 3.4 6 3 057 h SP M5X0.8 ISO2X(6HX) 4.2 4.28 LD5.0KBIPN 5P 70 14 25 39 6 4.9 8 3 057 h M6X1 ISO2X(6HX) 5 5.09 LD6.0MBIPN 5P 80 15 30 45 6 4.9 8 3 057 h M8X1.25 ISO2X(6HX) 6.8 6.85 LD8.0NBIPN 5P 90 19 35 47 8 6.2 9 3 084 h M10X1.5 ISO2X(6HX) 8.5 8.6 LD010OBIPN 5P 100 23 39 52 10 8 11 3 084 h SL M TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock DIN DIN 376 PO M12X1.75 ISO2X(6HX) 10.3 10.36 LG012PBIPN 5P 110 26 - 56 9 7 10 3 086 h M14X2 ISO2X(6HX) 12 12.12 LG014QBIPN 5P 110 26 - 56 11 9 12 3 086 h M16X2 ISO2X(6HX) 14 14.12 LG016QBIPN 5P 110 26 - 56 12 9 12 3 086 h MF TCTR Ø Hole Ø(tolerance)(mm)(mm)CodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOFTypeStock ST DIN 374 M10X1.25 ISO2X(6HX) 8.8 8.85 LM010NBIPN 5P 100 23 - 51 7 5.5 8 3 086 h M12X1.5 ISO2X(6HX) 10.5 10.6 LM012OBIPN 5P 100 21 - 51 9 7 10 3 086 h ROLL M12X1.25 ISO2X(6HX) 10.8 10.85 LM012NBIPN 5P 100 21 - 51 9 7 10 3 086 h M14X1.5 ISO2X(6HX) 12.5 12.6 LM014OBIPN 5P 100 21 - 51 11 9 12 3 086 h M16X1.5 ISO2X(6HX) 14.5 14.6 LM016OBIPN 5P 100 21 - 51 12 9 12 3 086 h CARBIDE LONG HAND TAPS EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS Technical info 205
