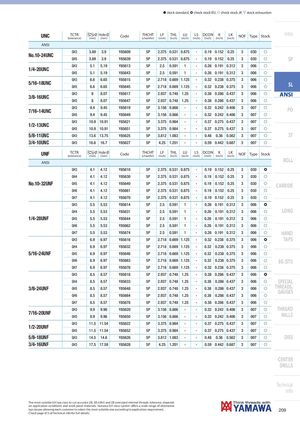

| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | Intro |
| ANSI | ||||||||||||||||
| N124NC | GH3 | 3.89 | 3.9 | Y85609 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | |
| o.0-U | GH5 | 3.89 | 3.9 | Y85639 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | SP |
| 1/4-20UNC | GH3 | 5.1 | 5.19 | Y85613 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | f | |
| GH5 | 5.1 | 5.19 | Y85643 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | f | ||
| GH3 | 6.6 | 6.65 | Y85615 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | f | ||
| 5/16-18UNC | GH5 | 6.6 | 6.65 | Y85645 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | f | SL |
| 3/8-16UNC | GH3 | 8 | 8.07 | Y85617 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | f | ANSI |
| GH5 | 8 | 8.07 | Y85647 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | f | ||
| GH3 | 9.4 | 9.45 | Y85619 | 5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | PO | |
| 7/16-14UNC | GH5 | 9.4 | 9.45 | Y85649 | 5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | |
| GH3 | 10.9 | 10.91 | Y85621 | 5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| 1/2-13UNC | GH5 | 10.9 | 10.91 | Y85651 | 5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | |
| 5/8-11UNC | GH3 | 13.6 | 13.75 | Y85625 | 5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | ST |
| 3/4-10UNC | GH3 | 16.6 | 16.7 | Y85627 | 5P | 4.25 | 1.201 | - | - | 0.59 | 0.442 | 0.687 | 3 | 007 | f | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | |
| ANSI | ROLL | |||||||||||||||
| GH3 | 4.1 | 4.12 | Y85610 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | ) | ||
| GH4 | 4.1 | 4.12 | Y85630 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| No.10-32UNF | GH5 | 4.1 | 4.12 | Y85640 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | CARBIDE |
| GH6 | 4.1 | 4.12 | Y85661 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH7 | 4.1 | 4.12 | Y85670 | 5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH3 | 5.5 | 5.53 | Y85614 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | ) | ||
| GH4 | 5.5 | 5.53 | Y85631 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | f | LONG | |
| 1/4-28UNF | GH5 | 5.5 | 5.53 | Y85644 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | f | |
| GH6 | 5.5 | 5.53 | Y85662 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | f | ||
| GH7 | 5.5 | 5.53 | Y85674 | 5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 006 | f | HAND | |
| GH3 | 6.9 | 6.97 | Y85616 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | ) | TAPS | |
| GH4 | 6.9 | 6.97 | Y85632 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | f | ||
| 5/16-24UNF | GH5 | 6.9 | 6.97 | Y85646 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | f | |
| GH6 | 6.9 | 6.97 | Y85663 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | f | EG (STI) | |
| GH7 | 6.9 | 6.97 | Y85676 | 5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 006 | f | ||
| GH3 | 8.5 | 8.57 | Y85618 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | ) | ||
| GH4 | 8.5 | 8.57 | Y85633 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | f | SPECIAL | |
| 3/8-24UNF | GH5 | 8.5 | 8.57 | Y85648 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | f | THREADS, GAUGES |
| GH6 | 8.5 | 8.57 | Y85664 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | f | ||
| GH7 | 8.5 | 8.57 | Y85678 | 5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 006 | f | ||
| GH3 | 9.9 | 9.96 | Y85620 | 5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | THREAD | |
| 7/16-20UNF | GH5 | 9.9 | 9.96 | Y85650 | 5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | MILLS |
| GH3 | 11.5 | 11.54 | Y85622 | 5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| 1/2-20UNF | GH5 | 11.5 | 11.54 | Y85652 | 5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | |
| 5/8-18UNF | GH3 | 14.5 | 14.6 | Y85626 | 5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | DIES |
| 3/4-16UNF | GH3 | 17.5 | 17.59 | Y85628 | 5P | 4.25 | 1.201 | - | - | 0.59 | 0.442 | 0.687 | 3 | 007 | f |
