Каталоги Yamawa твердосплавные метчики для закаленной стали

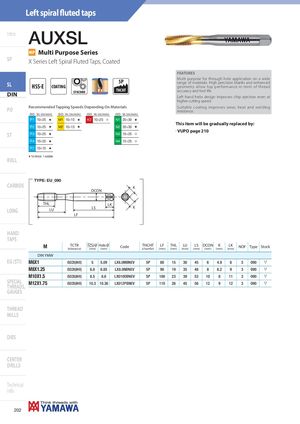

AUXSL
MP Multi Purpose Series
SP X Series Left Spiral Fluted Taps, Coated
5P
SL HSS-E
COATING
THCHT DIN SYNCHRO PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 10÷25 | H | M1 10÷15 | H | K2 | 10÷25 | I | N1 | 20÷30 | H | |
| P2 | 10÷25 | H | M2 10÷15 | H | N2 | 20÷30 | H | ||||
| ST | P3 | 10÷25 | H | N3 | 15÷25 | I | |||||
| P4 | 10÷25 | H | N4 | 15÷25 | I | ||||||
| P7 | 10÷15 | H |
H 1st choice I suitable ROLL
FEATURES Multi purpose for through hole application on a wide range of materials. High precision blanks and enhanced geometry allow top performance in term of thread accuracy and tool life. Left hand helix design improves chip ejection even at higher cutting speed. Suitable coating improves wear, heat and welding resistance.
This item will be gradually replaced by: . VUPO page 210
DIN-AUXSL
CARBIDE
LONG
HAND
TAPS
TYPE: EU_090
THL LU
LF
K DCON
LK LS K
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | |||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | LX6.0MBNEV | 5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 090 | m |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | LX8.0NBNEV | 5P | 90 | 19 | 35 | 48 | 8 | 6.2 | 9 | 3 | 090 | m |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | LX010OBNEV | 5P | 100 | 23 | 39 | 53 | 10 | 8 | 11 | 3 | 090 | m |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | LX012PBNEV | 5P | 110 | 26 | 45 | 56 | 12 | 9 | 12 | 3 | 090 | m |
THREADS,
