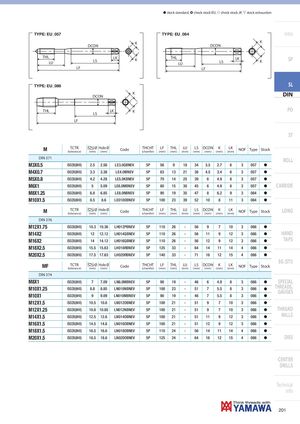

K K DCON DCON
| THL | LK | THL | ||
| K | LK |
LS LS K
LU LU LF LF
TYPE: EU_086 K DCON
THL LK K
LS LF
SP
SL
DIN
PO
ST
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | ROLL | |||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | LE3.0GBNEV | 5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h | |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | LE4.0IBNEV | 5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h | |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | LE5.0KBNEV | 5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 057 | h | |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | LE6.0MBNEV | 5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 057 | h | CARBIDE |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | LE8.0NBNEV | 5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | LE010OBNEV | 5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 084 | h | |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| DIN 376 | ||||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | LH012PBNEV | 5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | h | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | LH014QBNEV | 5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | h | HAND |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | LH016QBNEV | 5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | h | TAPS |
| M18X2.5 | ISO2X(6HX) | 15.5 | 15.63 | LH018RBNEV | 5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 4 | 086 | h | |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | LH020RBNEV | 5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 4 | 086 | h | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | EG (STI) |
| DIN 374 | ||||||||||||||||
| M8X1 | ISO2X(6HX) | 7 | 7.09 | LN8.0MBNEV | 5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 086 | h | SPECIAL |
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | LN010NBNEV | 5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 086 | h | THREADS, GAUGES |
| M10X1 | ISO2X(6HX) | 9 | 9.09 | LN010MBNEV | 5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 3 | 086 | h | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | LN012OBNEV | 5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | h | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | LN012NBNEV | 5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | h | THREAD |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | LN014OBNEV | 5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 3 | 086 | h | MILLS |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | LN016OBNEV | 5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 3 | 086 | h | |
| M18X1.5 | ISO2X(6HX) | 16.5 | 16.6 | LN018OBNEV | 5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 4 | 086 | h | |
| M20X1.5 | ISO2X(6HX) | 18.5 | 18.6 | LN020OBNEV | 5P | 125 | 24 | - | 64 | 16 | 12 | 15 | 4 | 086 | h | DIES |
