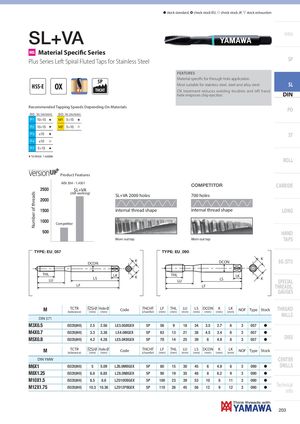

SL+VA
MS Material Specifi c Series
Plus Series Left Spiral Fluted Taps for Stainless Steel SP
| HSS-E | OX | 5P THCHT | F i | EATURE Material si Most suit X tt | S pecii able f | fi c for thr or stainl d | i ough ho ess steel ldi | i le applicatio , steel and all tbl | i n. oy stee d lf | l. t hd | SL | |||
| h | rea elix imr | en poves | reuce chip eje | s we ction. | g roues | n e | an | DIN | ||||||
| Recommende ISO Vc (m/min) P1 10÷15H P2 10÷15H | d Tapping Speeds D ISO Vc (m/min) M1 5÷15H M2 5÷10I | epen | ding On | Materials | PO | |||||||||
| hreads P3 ≤10 H P4 ≤10 I P7 5÷15H H1st choiceIsuitable | AISI 304 - 1.4301 SL+VA (still workin Product Feature | g) s | SL+VA 2000 h | oles | 700 CO | holes MPETI | TOR | DIN-S | L+VA | ST ROLL CARBIDE | ||||
| er of t | internal threa | d shape | i | nter | nal thr | ead sha | pe | LONG | ||||||
| Numb | Competitor | HAND | ||||||||||||
| Worn out tap | Worn | out tap | TAPS | |||||||||||
| TYPE: EU | 057 | TYPE: E | U090 | |||||||||||
| DCO | N | K | DCO | N | K | EG (STI) | ||||||||
| THL LU | L | S | LK K | THL L | U | LS | LK | K | SPECIAL | |||||
| LF | ||||||||||||||
| LF | THREADS, | |||||||||||||
| GAUGES | ||||||||||||||
| M | TCTR (tolerance) | (mm) | Ø Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) NOF | Type | Stock | THREAD |
| DIN 371 | MILLS | |||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | LE3.0GBGEX | 5P | 56 9 | 18 | 34 | 3.5 | 2.7 | 6 3 | 057 | h | |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | LE4.0IBGEX | 5P | 63 13 | 21 | 38 | 4.5 | 3.4 | 6 3 | 057 | h | |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | LE5.0KBGEX | 5P | 70 14 | 25 | 39 | 6 | 4.9 | 8 3 | 057 | h | DIES |
| M | TCTR (tolerance) | (mm) | Ø Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) NOF | Type | Stock | |
| DIN YMW | CENTER | |||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | LZ6.0MBGEX | 5P | 80 15 | 30 | 45 | 6 | 4.9 | 8 3 | 090 | h | DRILLS |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | LZ8.0NBGEX | 5P | 90 19 | 35 | 48 | 8 | 6.2 | 9 3 | 090 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | LZ010OBGEX | 5P | 100 23 | 39 | 53 | 10 | 8 | 11 3 | 090 | h | |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | LZ012PBGEX | 5P | 110 26 | 45 | 56 | 12 | 9 | 12 3 | 090 | h | Technical info |
