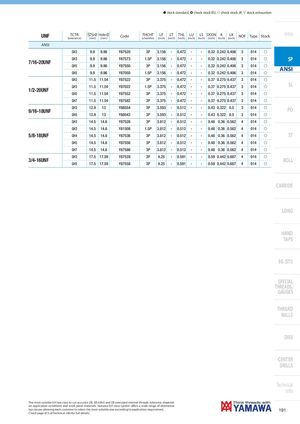

Общий каталог Yamawa 2021 - страница 190
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | LT ( inch ) | THL ( inch ) ( | LU inch ) | LS ( inch ) | DCON ( inch ) ( | K inch ) | LK ( inch ) | NOF | Type | Stock | Intro |
| ANSI | |||||||||||||||||
| GH3 | 9.9 | 9.96 | Y87520 | 3P | 3.156 | - | 0.472 | - | - | 0.32 0 | .242 | 0.406 | 3 | 014 | f | ||
| 7/16-20UNF | GH3 | 9.9 | 9.96 | Y87573 | 1.5P | 3.156 | - | 0.472 | - | - | 0.32 0 | .242 | 0.406 | 3 | 014 | f | SP |
| GH5 | 9.9 | 9.96 | Y87550 | 3P | 3.156 | - | 0.472 | - | - | 0.32 0 | .242 | 0.406 | 3 | 014 | f | ANSI | |
| GH5 | 9.9 | 9.96 | Y87050 | 1.5P | 3.156 | - | 0.472 | - | - | 0.32 0 | .242 | 0.406 | 3 | 014 | f | ||
| GH3 | 11.5 | 11.54 | Y87522 | 3P | 3.375 | - | 0.472 | - | - | 0.37 0 | .275 | 0.437 | 3 | 014 | f | ||
| 1/2-20UNF | GH3 | 11.5 | 11.54 | Y87022 | 1.5P | 3.375 | - | 0.472 | - | - | 0.37 0 | .275 | 0.437 | 3 | 014 | f | SL |
| GH5 | 11.5 | 11.54 | Y87552 | 3P | 3.375 | - | 0.472 | - | - | 0.37 0 | .275 | 0.437 | 3 | 014 | f | ||
| GH7 | 11.5 | 11.54 | Y87582 | 3P | 3.375 | - | 0.472 | - | - | 0.37 0 | .275 | 0.437 | 3 | 014 | f | ||
| 9/16-18UNF | GH3 | 12.9 | 13 | Y88554 | 3P | 3.593 | - | 0.512 | - | - | 0.43 0 | .322 | 0.5 | 3 | 014 | f | PO |
| GH5 | 12.9 | 13 | Y88542 | 3P | 3.593 | - | 0.512 | - | - | 0.43 0 | .322 | 0.5 | 3 | 014 | f | ||
| GH3 | 14.5 | 14.6 | Y87526 | 3P | 3.812 | - | 0.512 | - | - | 0.48 | 0.36 | 0.562 | 4 | 014 | f | ||
| GH3 | 14.5 | 14.6 | Y81508 | 1.5P | 3.812 | - | 0.512 | - | - | 0.48 | 0.36 | 0.562 | 4 | 014 | f | ||
| 5/8-18UNF | GH4 | 14.5 | 14.6 | Y87536 | 3P | 3.812 | - | 0.512 | - | - | 0.48 | 0.36 | 0.562 | 4 | 014 | f | ST |
| GH5 | 14.5 | 14.6 | Y87556 | 3P | 3.812 | - | 0.512 | - | - | 0.48 | 0.36 | 0.562 | 4 | 014 | f | ||
| GH7 | 14.5 | 14.6 | Y87586 | 3P | 3.812 | - | 0.512 | - | - | 0.48 | 0.36 | 0.562 | 4 | 014 | f | ||
| 3/4-16UNF | GH3 | 17.5 | 17.59 | Y87528 | 3P | 4.25 | - | 0.591 | - | - | 0.59 0 | .442 | 0.687 | 4 | 014 | f | ROLL |
| GH5 | 17.5 | 17.59 | Y87558 | 3P | 4.25 | - | 0.591 | - | - | 0.59 0 | .442 | 0.687 | 4 | 014 | f |
CARBIDE
LONG
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
