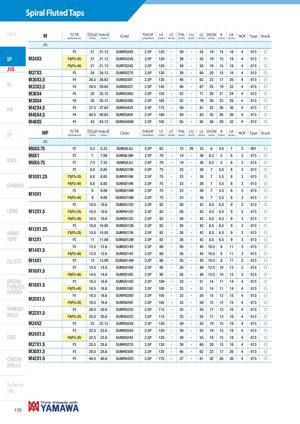

Общий каталог Yamawa 2021 - страница 169
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||||
| P3 | 21 | 21.13 | SUMR024S | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f | ||
| SP | M24X3 | P4(P3+20) | 21 | 21.13 | SUMS024S | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f |
| JIS | P5(P3+40) | 21 | 21.13 | SUMT024S | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f | |
| M27X3 | P3 | 24 | 24.13 | SUMR027S | 2.5P | 130 | - | 39 | - | 60 | 20 | 15 | 18 | 4 | 013 | f | |
| M30X3.5 | P4 | 26.5 | 26.63 | SUMS030T | 2.5P | 135 | - | 46 | - | 62 | 23 | 17 | 20 | 4 | 013 | f | |
| SL | M33X3.5 | P4 | 29.5 | 29.63 | SUMS033T | 2.5P | 145 | - | 46 | - | 67 | 25 | 19 | 22 | 4 | 013 | f |
| M36X4 | P4 | 32 | 32.12 | SUMS036U | 2.5P | 155 | - | 52 | - | 71 | 28 | 21 | 24 | 4 | 013 | f | |
| M39X4 | P4 | 35 | 35.12 | SUMS039U | 2.5P | 165 | - | 52 | - | 76 | 30 | 23 | 26 | 4 | 013 | f | |
| PO | M42X4.5 | P4 | 37.5 | 37.63 | SUMS042V | 2.5P | 175 | - | 59 | - | 81 | 32 | 26 | 30 | 4 | 013 | f |
| M45X4.5 | P4 | 40.5 | 40.63 | SUMS045V | 2.5P | 180 | - | 59 | - | 83 | 35 | 26 | 30 | 4 | 013 | f | |
| M48X5 | P4 | 43 | 43.12 | SUMS048W | 2.5P | 185 | - | 65 | - | 85 | 38 | 29 | 32 | 4 | 013 | f | |
| ST | MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||||
| M6X0.75 | P2 | 5.3 | 5.33 | SUMQ6.0J | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| M8X1 | P2 | 7 | 7.09 | SUMQ8.0M | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | |
| ROLL | M8X0.75 | P2 | 7.3 | 7.33 | SUMQ8.0J | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f |
| P2 | 8.8 | 8.85 | SUMQ010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| M10X1.25 | P3(P2+20) | 8.8 | 8.85 | SUMR010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | |
| CARBIDE | P4(P2+40) | 8.8 | 8.85 | SUMS010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | |
| P2 | 9 | 9.09 | SUMQ010M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| M10X1 | P4(P2+40) | 9 | 9.09 | SUMS010M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | |
| P2 | 10.5 | 10.6 | SUMQ012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| LONG | M12X1.5 | P3(P2+20) | 10.5 | 10.6 | SUMR012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| P4(P2+40) | 10.5 | 10.6 | SUMS012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| P2 | 10.8 | 10.85 | SUMQ012N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| HAND | M12X1.25 | P3(P2+20) | 10.8 | 10.85 | SUMR012N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| TAPS | M12X1 | P2 | 11 | 11.09 | SUMQ012M | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| P2 | 12.5 | 12.6 | SUMQ014O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| M14X1.5 | P4(P2+40) | 12.5 | 12.6 | SUMS014O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| EG (STI) | M14X1 | P2 | 13 | 13.09 | SUMQ014M | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f |
| P2 | 14.5 | 14.6 | SUMQ016O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | ||
| M16X1.5 | P4(P2+40) | 14.5 | 14.6 | SUMS016O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| SPECIAL | P2 | 16.5 | 16.6 | SUMQ018O | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | f | |
| THREADS, GAUGES | M18X1.5 | P4(P2+40) | 16.5 | 16.6 | SUMS018O | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | f |
| P3 | 18.5 | 18.6 | SUMR020O | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | ||
| M20X1.5 | P4(P3+20) | 18.5 | 18.6 | SUMS020O | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | |
| THREAD | P3 | 20.5 | 20.6 | SUMR022O | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | |
| MILLS | M22X1.5 | P4(P3+20) | 20.5 | 20.6 | SUMS022O | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f |
| M24X2 | P3 | 22 | 22.12 | SUMR024Q | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f | |
| P3 | 22.5 | 22.6 | SUMR024O | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f | ||
| DIES | M24X1.5 | P4(P3+20) | 22.5 | 22.6 | SUMS024O | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f |
| M27X1.5 | P3 | 25.5 | 25.6 | SUMR027O | 2.5P | 130 | - | 39 | - | 60 | 20 | 15 | 18 | 4 | 013 | f | |
| M30X1.5 | P3 | 28.5 | 28.6 | SUMR030O | 2.5P | 135 | - | 46 | - | 62 | 23 | 17 | 20 | 4 | 013 | f | |
| CENTER | M42X1.5 | P3 | 40.5 | 40.6 | SUMR042O | 2.5P | 175 | - | 27 | - | 81 | 32 | 26 | 30 | 4 | 013 | f |
| DRILLS |
