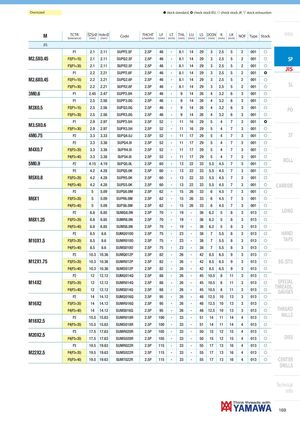

Общий каталог Yamawa 2021 - страница 168
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) ( m | LT m ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| P1 | 2.1 | 2.11 | SUPP2.5F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | ||
| M2.5X0.45 | P2(P1+15) | 2.1 | 2.11 | SUPQ2.5F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | SP |
| P3(P1+30) | 2.1 | 2.11 | SUPR2.5F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | JIS | |
| P1 | 2.2 | 2.21 | SUPP2.6F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | ) | ||
| M2.6X0.45 | P2(P1+15) | 2.2 | 2.21 | SUPQ2.6F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | |
| P3(P1+30) | 2.2 | 2.21 | SUPR2.6F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | SL | |
| 3M0.6 | P1 | 2.45 | 2.47 | SUPP3.0H | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P1 | 2.5 | 2.56 | SUPP3.0G | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| M3X0.5 | P2(P1+15) | 2.5 | 2.56 | SUPQ3.0G | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | PO |
| P3(P1+30) | 2.5 | 2.56 | SUPR3.0G | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| P1 | 2.9 | 2.97 | SUPP3.5H | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | ) | ||
| M3.5X0.6 | P3(P1+30) | 2.9 | 2.97 | SUPR3.5H | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| 4M0.75 | P2 | 3.3 | 3.33 | SUPQ4.0J | 2.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ST |
| P2 | 3.3 | 3.38 | SUPQ4.0I | 2.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| M4X0.7 | P3(P2+20) | 3.3 | 3.38 | SUPR4.0I | 2.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P4(P2+40) | 3.3 | 3.38 | SUPS4.0I | 2.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| 5M0.9 | P2 | 4.15 | 4.19 | SUPQ5.0L | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ROLL |
| P2 | 4.2 | 4.28 | SUPQ5.0K | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| M5X0.8 | P3(P2+20) | 4.2 | 4.28 | SUPR5.0K | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P4(P2+40) | 4.2 | 4.28 | SUPS5.0K | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | CARBIDE | |
| P2 | 5 | 5.09 | SUPQ6.0M | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| M6X1 | P3(P2+20) | 5 | 5.09 | SUPR6.0M | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| P4(P2+40) | 5 | 5.09 | SUPS6.0M | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| P2 | 6.8 | 6.85 | SUMQ8.0N | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | LONG | |
| M8X1.25 | P3(P2+20) | 6.8 | 6.85 | SUMR8.0N | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | |
| P4(P2+40) | 6.8 | 6.85 | SUMS8.0N | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | ||
| P2 | 8.5 | 8.6 | SUMQ010O | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | HAND | |
| M10X1.5 | P3(P2+20) | 8.5 | 8.6 | SUMR010O | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | TAPS |
| P4(P2+40) | 8.5 | 8.6 | SUMS010O | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| P2 | 10.3 | 10.36 | SUMQ012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| M12X1.75 | P3(P2+20) | 10.3 | 10.36 | SUMR012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | EG (STI) |
| P4(P2+40) | 10.3 | 10.36 | SUMS012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| P2 | 12 | 12.12 | SUMQ014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| M14X2 | P3(P2+20) | 12 | 12.12 | SUMR014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | SPECIAL |
| P4(P2+40) | 12 | 12.12 | SUMS014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | THREADS, GAUGES | |
| P2 | 14 | 1412 | SUM016 | 2P | 9 | 26 | 48 | 12 | 10 | 13 | 3 | 013 | f | ||||
| . | .5 | 5 | - | - | .5 | ||||||||||||
| M16X2 | P3(P2+20) | 14 | 14.12 | SUMR016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| P4(P2+40) | 14 | 14.12 | SUMS016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | THREAD | |
| MILLS | |||||||||||||||||
| P3 | 15.5 | 15.63 | SUMR018R | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | f | ||
| M18X2.5 | |||||||||||||||||
| P4(P3+20) | 15.5 | 15.63 | SUMS018R | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | f | ||
| P3 | 17.5 | 17.63 | SUMR020R | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | ||
| M20X2.5 | P4(P3+20) | 17.5 | 17.63 | SUMS020R | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | DIES |
| P3 | 19.5 | 19.63 | SUMR022R | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | ||
| M22X2.5 | P4(P3+20) | 19.5 | 19.63 | SUMS022R | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | |
| P5(P3+40) | 19.5 | 19.63 | SUMT022R | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | CENTER | |
| DRILLS |
