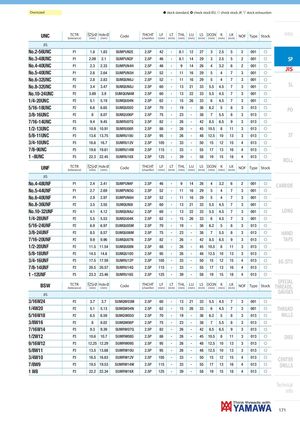

Общий каталог Yamawa 2021 - страница 170
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| No.2-56UNC | P1 | 1.8 | 1.83 | SUMPUN2E | 2.5P | 42 | - | 8.1 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f | |
| No.3-48UNC | P1 | 2.09 | 2.1 | SUMPUN3F | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | SP |
| No.4-40UNC | P1 | 2.3 | 2.33 | SUMPUN4H | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 2 | 001 | f | JIS |
| No.5-40UNC | P1 | 2.6 | 2.64 | SUMPUN5H | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.6-32UNC | P2 | 2.8 | 2.83 | SUMQUN6J | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.8-32UNC | P2 | 3.4 | 3.47 | SUMQUN8J | 2.5P | 60 | - | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | SL |
| No.10-24UNC | P2 | 3.89 | 3.9 | SUMQUNAM | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| 1/4-20UNC | P2 | 5.1 | 5.19 | SUMQU04N | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 5/16-18UNC | P2 | 6.6 | 6.65 | SUMQU05O | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | PO |
| 3/8-16UNC | P2 | 8 | 8.07 | SUMQU06P | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | |
| 7/16-14UNC | P3 | 9.4 | 9.45 | SUMRU07Q | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| 1/2-13UNC | P3 | 10.9 | 10.91 | SUMRU08R | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| 5/8-11UNC | P3 | 13.6 | 13.75 | SUMRU10U | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | ST |
| 3/4-10UNC | P3 | 16.6 | 16.7 | SUMRU12V | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | |
| 7/8-9UNC | P3 | 19.6 | 19.61 | SUMRU14W | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | |
| 1 -8UNC | P3 | 22.3 | 22.45 | SUMRU16X | 2.5P | 125 | - | 39 | - | 58 | 19 | 15 | 18 | 4 | 013 | f | ROLL |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | |||||||||||||||||
| No.4-48UNF | P1 | 2.4 | 2.41 | SUMPUN4F | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 2 | 001 | f | CARBIDE |
| No.5-44UNF | P1 | 2.7 | 2.69 | SUMPUN5G | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.6-40UNF | P1 | 2.9 | 2.97 | SUMPUN6H | 2.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| No.8-36UNF | P2 | 3.5 | 3.55 | SUMQUN8I | 2.5P | 60 | - | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| No.10-32UNF | P2 | 4.1 | 4.12 | SUMQUNAJ | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | LONG |
| 1/4-28UNF | P2 | 5.5 | 5.53 | SUMQU04K | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| 5/16-24UNF | P2 | 6.9 | 6.97 | SUMQU05M | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | |
| 3/8-24UNF | P2 | 8.5 | 8.57 | SUMQU06M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | HAND |
| 7/16-20UNF | P2 | 9.9 | 9.96 | SUMQU07N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | TAPS |
| 1/2-20UNF | P2 | 11.5 | 11.54 | SUMQU08N | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| 5/8-18UNF | P2 | 14.5 | 14.6 | SUMQU10O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| 3/4-16UNF | P3 | 17.5 | 17.59 | SUMRU12P | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | EG (STI) |
| 7/8-14UNF | P3 | 20.5 | 20.57 | SUMRU14Q | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | |
| 1 -12UNF | P3 | 23.3 | 23.46 | SUMRU16S | 2.5P | 125 | - | 39 | - | 58 | 19 | 15 | 18 | 4 | 013 | f | |
| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SPECIAL THREADS, |
| JIS | GAUGES | ||||||||||||||||
| 3/16W24 | P2 | 3.7 | 3.7 | SUMQW03M | 2.5P | 60 | - | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| 1/4W20 | P2 | 5.1 | 5.13 | SUMQW04N | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | THREAD |
| 5/16W18 | P2 | 6.5 | 6.59 | SUMQW05O | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | MILLS |
| 3/8W16 | P2 | 8 | 8.02 | SUMQW06P | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | |
| 7/16W14 | P3 | 9.3 | 9.39 | SUMRW07Q | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| 1/2W12 | P3 | 10.6 | 10.7 | SUMRW08S | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | DIES |
| 9/16W12 | P3 | 12.25 | 12.29 | SUMRW09S | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| 5/8W11 | P3 | 13.5 | 13.68 | SUMRW10U | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| 3/4W10 | P3 | 16.5 | 16.63 | SUMRW12V | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | CENTER |
| 7/8W9 | P3 | 19.5 | 19.53 | SUMRW14W | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | DRILLS |
| 1 W8 | P3 | 22.2 | 22.34 | SUMRW16X | 2.5P | 125 | - | 39 | - | 58 | 19 | 15 | 18 | 4 | 013 | f |
