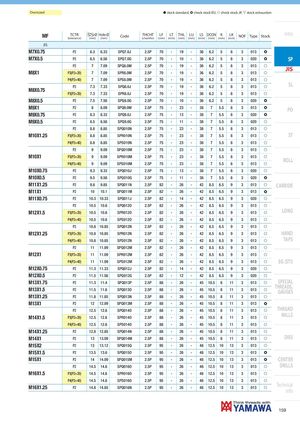

Общий каталог Yamawa 2021 - страница 158
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) ( m | LT m | ) THL ( mm ) ( | LU mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| M7X0.75 | P2 | 6.3 | 6.33 | SPQ7.0J | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | ) | |
| M7X0.5 | P2 | 6.5 | 6.56 | SPQ7.0G | 2.5P | 70 | - | 10 | - | 36 | 6.2 | 5 | 8 | 3 | 020 | ) | SP |
| P2 | 7 | 7.09 | SPQ8.0M | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | ||
| M8X1 | P3(P2+20) | 7 | 7.09 | SPR8.0M | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | JIS |
| P4(P2+40) | 7 | 7.09 | SPS8.0M | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | ||
| P2 | 7.3 | 7.33 | SPQ8.0J | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | SL | |
| M8X0.75 | P3(P2+20) | 7.3 | 7.33 | SPR8.0J | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f | |
| M8X0.5 | P2 | 7.5 | 7.56 | SPQ8.0G | 2.5P | 70 | - | 10 | - | 36 | 6.2 | 5 | 8 | 3 | 020 | ) | |
| M9X1 | P2 | 8 | 8.09 | SPQ9.0M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | ) | PO |
| M9X0.75 | P2 | 8.3 | 8.33 | SPQ9.0J | 2.5P | 75 | - | 13 | - | 38 | 7 | 5.5 | 8 | 3 | 020 | ) | |
| M9X0.5 | P2 | 8.5 | 8.56 | SPQ9.0G | 2.5P | 75 | - | 11 | - | 38 | 7 | 5.5 | 8 | 3 | 020 | f | |
| P2 | 8.8 | 8.85 | SPQ010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| M10X1.25 | P3(P2+20) | 8.8 | 8.85 | SPR010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ST |
| P4(P2+40) | 8.8 | 8.85 | SPS010N | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| P2 | 9 | 9.09 | SPQ010M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| M10X1 | P3(P2+20) | 9 | 9.09 | SPR010M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | |
| P4(P2+40) | 9 | 9.09 | SPS010M | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f | ROLL | |
| M10X0.75 | P2 | 9.3 | 9.33 | SPQ010J | 2.5P | 75 | - | 13 | - | 38 | 7 | 5.5 | 8 | 3 | 020 | f | |
| M10X0.5 | P2 | 9.5 | 9.56 | SPQ010G | 2.5P | 75 | - | 11 | - | 38 | 7 | 5.5 | 8 | 3 | 020 | ) | |
| M11X1.25 | P2 | 9.8 | 9.85 | SPQ011N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | CARBIDE |
| M11X1 | P2 | 10 | 10.1 | SPQ011M | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | ) | |
| M11X0.75 | P2 | 10.3 | 10.33 | SPQ011J | 2.5P | 82 | - | 14 | - | 42 | 8.5 | 6.5 | 9 | 3 | 020 | f | |
| P2 | 10.5 | 10.6 | SPQ012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| M12X1.5 | P3(P2+20) | 10.5 | 10.6 | SPR012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | LONG |
| P4(P2+40) | 10.5 | 10.6 | SPS012O | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| P2 | 10.8 | 10.85 | SPQ012N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| M12X1.25 | P3(P2+20) | 10.8 | 10.85 | SPR012N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | HAND |
| P4(P2+40) | 10.8 | 10.85 | SPS012N | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | TAPS | |
| P2 | 11 | 11.09 | SPQ012M | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| M12X1 | P3(P2+20) | 11 | 11.09 | SPR012M | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| P4(P2+40) | 11 | 11.09 | SPS012M | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | EG (STI) | |
| M12X0.75 | P2 | 11.3 | 11.33 | SPQ012J | 2.5P | 82 | - | 14 | - | 42 | 8.5 | 6.5 | 9 | 3 | 020 | f | |
| M12X0.5 | P2 | 11.5 | 11.56 | SPQ012G | 2.5P | 82 | - | 12 | - | 42 | 8.5 | 6.5 | 9 | 3 | 020 | f | |
| M13X1.75 | P2 | 11.3 | 11.4 | SPQ013P | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | SPECIAL |
| M13X1.5 | P2 | 11.5 | 11.6 | SPQ013O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | THREADS, GAUGES |
| M13X1.25 | P2 | 11.8 | 11.85 | SPQ013N | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| M13X1 | P2 | 12 | 12.09 | SPQ013M | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | ) | |
| P2 | 12.5 | 12.6 | SPQ014O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | THREAD | |
| M14X1.5 | P3(P2+20) | 12.5 | 12.6 | SPR014O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | MILLS |
| P4(P2+40) | 12.5 | 12.6 | SPS014O | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| M14X1.25 | P2 | 12.8 | 12.85 | SPQ014N | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| M14X1 | P2 | 13 | 13.09 | SPQ014M | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | DIES |
| M15X2 | P2 | 13 | 13.12 | SPQ015Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| M15X1.5 | P2 | 13.5 | 13.6 | SPQ015O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | ) | |
| M15X1 | P2 | 14 | 14.09 | SPQ015M | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | ) | CENTER |
| P2 | 14.5 | 14.6 | SPQ016O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | DRILLS | |
| M16X1.5 | P3(P2+20) | 14.5 | 14.6 | SPR016O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| P4(P2+40) | 14.5 | 14.6 | SPS016O | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | Technical | |
| M16X1.25 | P2 | 14.8 | 14.85 | SPQ016N | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | info |
