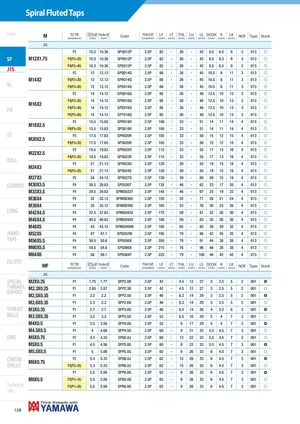

Общий каталог Yamawa 2021 - страница 157
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||||
| P2 | 10.3 | 10.36 | SPQ012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| SP | M12X1.75 | P3(P2+20) | 10.3 | 10.36 | SPR012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| JIS | P4(P2+40) | 10.3 | 10.36 | SPS012P | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| P2 | 12 | 12.12 | SPQ014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| M14X2 | P3(P2+20) | 12 | 12.12 | SPR014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| SL | P4(P2+40) | 12 | 12.12 | SPS014Q | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | f | |
| P2 | 14 | 14.12 | SPQ016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | ||
| M16X2 | P3(P2+20) | 14 | 14.12 | SPR016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| PO | P4(P2+40) | 14 | 14.12 | SPS016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | |
| P5(P2+60) | 14 | 14.12 | SPT016Q | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f | ||
| P3 | 15.5 | 15.63 | SPR018R | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | f | ||
| M18X2.5 | P4(P3+20) | 15.5 | 15.63 | SPS018R | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | f | |
| ST | P3 | 17.5 | 17.63 | SPR020R | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | |
| M20X2.5 | P4(P3+20) | 17.5 | 17.63 | SPS020R | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f | |
| P3 | 19.5 | 19.63 | SPR022R | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f | ||
| ROLL | M22X2.5 | P4(P3+20) | 19.5 | 19.63 | SPS022R | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | f |
| M24X3 | P3 | 21 | 21.13 | SPR024S | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f | |
| P4(P3+20) | 21 | 21.13 | SPS024S | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | f | ||
| M27X3 | P3 | 24 | 24.13 | SPR027S | 2.5P | 130 | - | 39 | - | 60 | 20 | 15 | 18 | 4 | 013 | f | |
| CARBIDE | M30X3.5 | P4 | 26.5 | 26.63 | SPS030T | 2.5P | 135 | - | 46 | - | 62 | 23 | 17 | 20 | 4 | 013 | f |
| M33X3.5 | P4 | 29.5 | 29.63 | SPMS033T | 2.5P | 145 | - | 46 | - | 67 | 25 | 19 | 22 | 4 | 013 | f | |
| M36X4 | P4 | 32 | 32.12 | SPMS036U | 2.5P | 155 | - | 52 | - | 71 | 28 | 21 | 24 | 4 | 013 | f | |
| M39X4 | P4 | 35 | 35.12 | SPMS039U | 2.5P | 165 | - | 52 | - | 76 | 30 | 23 | 26 | 4 | 013 | f | |
| LONG | M42X4.5 | P4 | 37.5 | 37.63 | SPMS042V | 2.5P | 175 | - | 59 | - | 81 | 32 | 26 | 30 | 4 | 013 | f |
| M45X4.5 | P4 | 40.5 | 40.63 | SPMS045V | 2.5P | 180 | - | 59 | - | 83 | 35 | 26 | 30 | 4 | 013 | f | |
| M48X5 | P4 | 43 | 43.12 | SPMS048W | 2.5P | 185 | - | 65 | - | 85 | 38 | 29 | 32 | 4 | 013 | f | |
| HAND | M52X5 | P4 | 47 | 47.1 | SPS052W | 2.5P | 195 | - | 70 | - | 86 | 42 | 35 | 35 | 4 | 013 | f |
| TAPS | M56X5.5 | P4 | 50.5 | 50.6 | SPS056X | 2.5P | 205 | - | 70 | - | 91 | 44 | 38 | 38 | 4 | 013 | f |
| M60X5.5 | P4 | 54.5 | 54.6 | SPS060X | 2.5P | 215 | - | 76 | - | 96 | 46 | 38 | 38 | 4 | 013 | f | |
| M64X6 | P4 | 58 | 58.1 | SPS064Y | 2.5P | 225 | - | 79 | - | 100 | 48 | 42 | 42 | 4 | 013 | f | |
| EG (STI) | MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||||
| SPECIAL | M2X0.25 | P1 | 1.75 | 1.77 | SPP2.0B | 2.5P | 42 | - | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | ) |
| THREADS, GAUGES | M2.3X0.25 | P1 | 2.05 | 2.07 | SPP2.3B | 2.5P | 42 | - | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
| M2.5X0.35 | P1 | 2.2 | 2.2 | SPP2.5D | 2.5P | 46 | - | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | ) | |
| M2.6X0.35 | P1 | 2.3 | 2.3 | SPP2.6D | 2.5P | 46 | - | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f | |
| THREAD | M3X0.35 | P1 | 2.7 | 2.7 | SPP3.0D | 2.5P | 46 | - | 6.5 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | ) |
| MILLS | M3.5X0.35 | P1 | 3.2 | 3.2 | SPP3.5D | 2.5P | 52 | - | 6.5 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| M4X0.5 | P1 | 3.5 | 3.56 | SPP4.0G | 2.5P | 52 | - | 9 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | ) | |
| M4.5X0.5 | P1 | 4 | 4.06 | SPP4.5G | 2.5P | 60 | - | 9 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| DIES | M5X0.75 | P2 | 4.3 | 4.33 | SPQ5.0J | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f |
| M5X0.5 | P1 | 4.5 | 4.56 | SPP5.0G | 2.5P | 60 | - | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | ) | |
| M5.5X0.5 | P1 | 5 | 5.06 | SPP5.5G | 2.5P | 62 | - | 9 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| CENTER | P2 | 5.3 | 5.33 | SPQ6.0J | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | ) | |
| DRILLS | M6X0.75 | P3(P2+20) | 5.3 | 5.33 | SPR6.0J | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f |
| P1 | 5.5 | 5.56 | SPP6.0G | 2.5P | 62 | - | 9 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | ) | ||
| M6X0.5 | P2(P1+15) | 5.5 | 5.56 | SPQ6.0G | 2.5P | 62 | - | 9 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| Technical | P3(P1+30) | 5.5 | 5.56 | SPR6.0G | 2.5P | 62 | - | 9 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| info |
