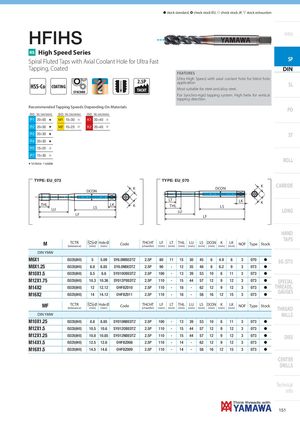

HFIHS
HS High Speed Series
Spiral Fluted Taps with Axial Coolant Hole for Ultra Fast SP
Tapping, Coated DIN
FEATURES Ultra High Speed with axial coolant hole for blind hole 2.5P application
HSS-Co SL
COATING
THCHT Most suitable for steel and alloy steel. SYNCHRO For Synchro-rigid tapping system. High helix for vertical tapping direction. Recommended Tapping Speeds Depending On Materials PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 20÷50 | H | M1 15÷30 | I | K1 | 20÷40 | I |
| P2 | 20÷50 | H | M2 15÷25 | I | K2 | 20÷40 | I |
| P3 | 20÷30 | H | ST | ||||
| P4 | 20÷30 | H | |||||
| P5 | 15÷25 | I | |||||
| P7 | 15÷30 | I |
ROLL H 1st choice I suitable DIN-HFIHS
TYPE: EU_073 TYPE: EU_070 K DCON LT
THL LK K THL
LS LU LU LF
DCON
LS LF
LK
K CARBIDE
K
LONG
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) ( | LK mm ) | NOF | Type | Stock | |
| DIN YMW | |||||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | SY6.0MBEDTZ | 2.5P | 80 | 11 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 070 | h | EG (STI) |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | SY8.0NBEDTZ | 2.5P | 90 | - | 12 | 35 | 48 | 8 | 6.2 | 9 | 3 | 073 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | SY010OBEDTZ | 2.5P | 100 | - | 13 | 39 | 53 | 10 | 8 | 11 | 3 | 073 | h | |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | SY012PBEDTZ | 2.5P | 110 | - | 15 | 44 | 57 | 12 | 9 | 12 | 3 | 073 | h | SPECIAL |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | OHFBZ010 | 2.5P | 110 | - | 18 | - | 62 | 12 | 9 | 12 | 3 | 073 | h | THREADS, |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | OHFBZ011 | 2.5P | 110 | - | 18 | - | 58 | 16 | 12 | 15 | 3 | 073 | h | GAUGES |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) ( | LK mm ) | NOF | Type | Stock | THREAD |
| DIN YMW | MILLS | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | SY010NBEDTZ | 2.5P | 100 | - | 13 | 39 | 53 | 10 | 8 | 11 | 3 | 073 | h | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | SY012OBEDTZ | 2.5P | 110 | - | 15 | 44 | 57 | 12 | 9 | 12 | 3 | 073 | h | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | SY012NBEDTZ | 2.5P | 110 | - | 15 | 44 | 57 | 12 | 9 | 12 | 3 | 073 | h | DIES |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | OHFBZ008 | 2.5P | 110 | - | 14 | - | 62 | 12 | 9 | 12 | 3 | 073 | h | |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | OHFBZ009 | 2.5P | 110 | - | 14 | - | 58 | 16 | 12 | 15 | 3 | 073 | h |
