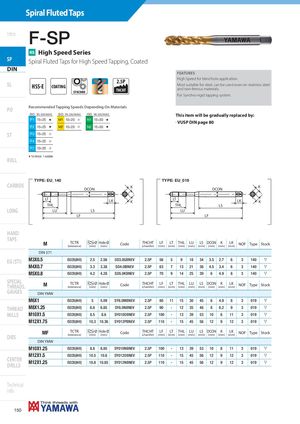

F-SP
HS High Speed Series
SP Spiral Fluted Taps for High Speed Tapping, Coated
DIN
2.5P
SL HSS-E
COATING
THCHT SYNCHRO
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 15÷25 | H | M1 10÷20 | I | N1 | 15÷30 | H | |
| P2 | 15÷25 | H | M2 10÷20 | I | N2 | 15÷30 | H | |
| ST | P3 | 15÷25 | I | |||||
| P4 | 15÷25 | I | ||||||
| P7 | 10÷20 | I |
H 1st choice I suitable ROLL
FEATURES High Speed for blind hole application. Most suitable for steel, can be used even on stainless steel and non-ferrous materials. For Synchro-rigid tapping system.
This item will be gradually replaced by: . VUSP DIN page 80
DIN-F-SP
CARBIDE
LONG
HAND
TAPS
TYPE: EU_140 TYPE: EU_019 K K DCON DCON
| LT | LK | LT | LK | |||
| K | K | |||||
| THL | THL | LS |
LU LS LU
LF LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | SD3.0GBNEV | 2.5P | 56 | 5 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 140 | m |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | SD4.0IBNEV | 2.5P | 63 | 7 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 140 | m |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | SD5.0KBNEV | 2.5P | 70 | 9 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 140 | m |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | ||||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | SY6.0MBNEV | 2.5P | 80 | 11 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 019 | m |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | SY8.0NBNEV | 2.5P | 90 | - | 12 | 35 | 48 | 8 | 6.2 | 9 | 3 | 019 | m |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | SY010OBNEV | 2.5P | 100 | - | 13 | 39 | 53 | 10 | 8 | 11 | 3 | 019 | m |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | SY012PBNEV | 2.5P | 110 | - | 15 | 45 | 56 | 12 | 9 | 12 | 3 | 019 | m |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | SY010NBNEV | 2.5P | 100 | - | 13 | 39 | 53 | 10 | 8 | 11 | 3 | 019 | m |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | SY012OBNEV | 2.5P | 110 | - | 15 | 45 | 56 | 12 | 9 | 12 | 3 | 019 | m |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | SY012NBNEV | 2.5P | 110 | - | 15 | 45 | 56 | 12 | 9 | 12 | 3 | 019 | m |
