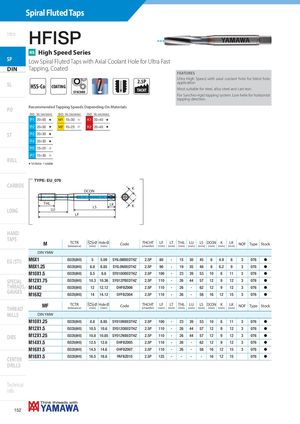

HFISP
HS High Speed Series
| SP | Low Spiral Fluted Taps with Axial Coolant Hole for Ultra Fast | |
| DIN | Tapping, Coated | |
| 2.5P | ||
| SL | HSS-Co | |
| COATING | ||
| THCHT | ||
| SYNCHRO | ||
| PO | Recommended Tapping Speeds Depending On Materials | |
| ISO Vc (m/min) | ISO Vc (m/min) ISO Vc (m/min) |
| P1 | 20÷50 | H | M1 15÷30 | I | K1 | 20÷40 | H |
| P2 | 20÷50 | H | M2 15÷25 | I | K2 | 20÷40 | H |
| ST P3 | 20÷30 | H | |||||
| P4 | 20÷30 | H | |||||
| P5 | 15÷25 | I | |||||
| P7 | 15÷30 | I |
ROLL H 1st choice I suitable
FEATURES Ultra High Speed with axial coolant hole for blind hole application Most suitable for steel, alloy steel and cast iron. For Synchro-rigid tapping system. Low helix for horizontal tapping direction.
DIN-HFISP
CARBIDE
LONG
HAND
TAPS
TYPE: EU_076
THL LU
LF
K DCON
LK LS K
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | ||||||||||||||||
| M6X1 | ISO2X(6HX) | 5 | 5.09 | SY6.0MBEDTHZ | 2.5P | 80 | - | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 076 | h |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | SY8.0NBEDTHZ | 2.5P | 90 | - | 19 | 35 | 48 | 8 | 6.2 | 9 | 3 | 076 | h |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | SY010OBEDTHZ | 2.5P | 100 | - | 23 | 39 | 53 | 10 | 8 | 11 | 3 | 076 | h |
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | SY012PBEDTHZ | 2.5P | 110 | - | 26 | 44 | 57 | 12 | 9 | 12 | 3 | 076 | h |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | OHFBZ006 | 2.5P | 110 | - | 26 | - | 62 | 12 | 9 | 12 | 3 | 076 | h |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | OFFBZ004 | 2.5P | 110 | - | 26 | - | 58 | 16 | 12 | 15 | 3 | 076 | h |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN YMW | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | SY010NBEDTHZ | 2.5P | 100 | - | 23 | 39 | 53 | 10 | 8 | 11 | 3 | 076 | h |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | SY012OBEDTHZ | 2.5P | 110 | - | 26 | 44 | 57 | 12 | 9 | 12 | 3 | 076 | h |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | SY012NBEDTHZ | 2.5P | 110 | - | 26 | 44 | 57 | 12 | 9 | 12 | 3 | 076 | h |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | OHFBZ005 | 2.5P | 110 | - | 26 | - | 62 | 12 | 9 | 12 | 3 | 076 | h |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | OHFBZ007 | 2.5P | 110 | - | 26 | - | 58 | 16 | 12 | 15 | 3 | 076 | h |
| M18X1.5 | ISO2X(6HX) | 16.5 | 16.6 | PAFBZ010 | 2.5P | 125 | - | - | - | - | 16 | 12 | 15 | 076 | h |
