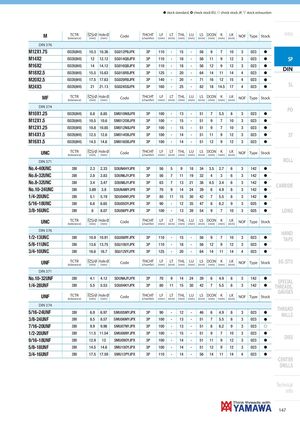

Общий каталог Yamawa 2021 - страница 146
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 376 | |||||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | SG012PBJPX | 3P | 110 | - | 15 | - | 56 | 9 | 7 | 10 | 3 | 023 | h | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | SG014QBJPX | 3P | 110 | - | 18 | - | 56 | 11 | 9 | 12 | 3 | 023 | h | SP |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | SG016QBJPX | 3P | 110 | - | 18 | - | 56 | 12 | 9 | 12 | 3 | 023 | h | DIN |
| M18X2.5 | ISO2X(6HX) | 15.5 | 15.63 | SG018RBJPX | 3P | 125 | - | 20 | - | 64 | 14 | 11 | 14 | 4 | 023 | h | |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | SG020RBJPX | 3P | 140 | - | 20 | - | 71 | 16 | 12 | 15 | 4 | 023 | h | |
| M24X3 | ISO2X(6HX) | 21 | 21.13 | SG024SBJPX | 3P | 160 | - | 25 | - | 82 | 18 | 14.5 | 17 | 4 | 023 | h | SL |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 374 | PO | ||||||||||||||||
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | SM010NBJPX | 3P | 100 | - | 13 | - | 51 | 7 | 5.5 | 8 | 3 | 023 | h | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | SM012OBJPX | 3P | 100 | - | 15 | - | 51 | 9 | 7 | 10 | 3 | 023 | h | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | SM012NBJPX | 3P | 100 | - | 15 | - | 51 | 9 | 7 | 10 | 3 | 023 | h | |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | SM014OBJPX | 3P | 100 | - | 14 | - | 51 | 11 | 9 | 12 | 3 | 023 | h | ST |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | SM016OBJPX | 3P | 100 | - | 14 | - | 51 | 12 | 9 | 12 | 3 | 023 | h | |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | ROLL | ||||||||||||||||
| No.4-40UNC | 2BX | 2.3 | 2.33 | SDUN4HYJPX | 3P | 56 | 5 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 142 | h | |
| No.6-32UNC | 2BX | 2.8 | 2.83 | SDUN6JYJPX | 3P | 56 | 7 | 11 | 19 | 32 | 4 | 3 | 6 | 3 | 142 | h | |
| No.8-32UNC | 2BX | 3.4 | 3.47 | SDUN8JYJPX | 3P | 63 | 7 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 142 | h | |
| No.10-24UNC | 2BX | 3.89 | 3.9 | SDUNAMYJPX | 3P | 70 | 9 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 142 | h | CARBIDE |
| 1/4-20UNC | 2BX | 5.1 | 5.19 | SDU04NYJPX | 3P | 80 | 11 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 142 | h | |
| 5/16-18UNC | 2BX | 6.6 | 6.65 | SDU05OYJPX | 3P | 90 | - | 12 | 35 | 47 | 8 | 6.2 | 9 | 3 | 025 | h | |
| 3/8-16UNC | 2BX | 8 | 8.07 | SDU06PYJPX | 3P | 100 | - | 13 | 39 | 54 | 9 | 7 | 10 | 3 | 025 | h | LONG |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | HAND | ||||||||||||||||
| 1/2-13UNC | 2BX | 10.9 | 10.91 | SGU08RYJPX | 3P | 110 | - | 15 | - | 56 | 9 | 7 | 10 | 3 | 023 | h | TAPS |
| 5/8-11UNC | 2BX | 13.6 | 13.75 | SGU10UYJPX | 3P | 110 | - | 18 | - | 56 | 12 | 9 | 12 | 3 | 023 | h | |
| 3/4-10UNC | 2BX | 16.6 | 16.7 | SGU12VYJPX | 3P | 125 | - | 20 | - | 64 | 14 | 11 | 14 | 4 | 023 | h | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | EG (STI) |
| DIN 371 | |||||||||||||||||
| No.10-32UNF | 2BX | 4.1 | 4.12 | SDUNAJYJPX | 3P | 70 | 9 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 142 | h | SPECIAL |
| 1/4-28UNF | 2BX | 5.5 | 5.53 | SDU04KYJPX | 3P | 80 | 11 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 142 | h | THREADS, |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | GAUGES |
| DIN 374 | |||||||||||||||||
| 5/16-24UNF | 2BX | 6.9 | 6.97 | SMU05MYJPX | 3P | 90 | - | 12 | - | 46 | 6 | 4.9 | 8 | 3 | 023 | h | THREAD MILLS |
| 3/8-24UNF | 2BX | 8.5 | 8.57 | SMU06MYJPX | 3P | 100 | - | 13 | - | 51 | 7 | 5.5 | 8 | 3 | 023 | h | |
| 7/16-20UNF | 2BX | 9.9 | 9.96 | SMU07NYJPX | 3P | 100 | - | 13 | - | 51 | 8 | 6.2 | 9 | 3 | 023 | f | |
| 1/2-20UNF | 2BX | 11.5 | 11.54 | SMU08NYJPX | 3P | 100 | - | 15 | - | 51 | 9 | 7 | 10 | 3 | 023 | h | |
| 9/16-18UNF | 2BX | 12.9 | 13 | SMU09OYJPX | 3P | 100 | - | 14 | - | 51 | 11 | 9 | 12 | 3 | 023 | h | DIES |
| 5/8-18UNF | 2BX | 14.5 | 14.6 | SMU10OYJPX | 3P | 100 | - | 14 | - | 51 | 12 | 9 | 12 | 3 | 023 | h | |
| 3/4-16UNF | 2BX | 17.5 | 17.59 | SMU12PYJPX | 3P | 110 | - | 14 | - | 56 | 14 | 11 | 14 | 4 | 023 | h |
