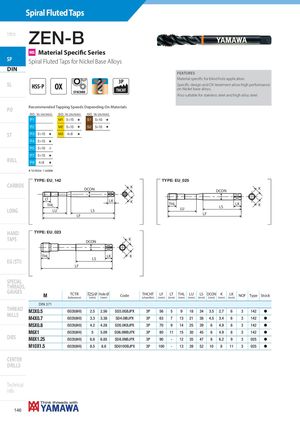

ZEN-B
MS Material Specifi c Series
SP Spiral Fluted Taps for Nickel Base Alloys
DIN
FEATURES Material specifi c for blind hole application.
3P
| SL | HSS-P | OX | Specifi c design and OX treatment allow high performance | ||||
| THCHT on Nickel base alloys. | |||||||
| SYNCHRO | |||||||
| Also suitable for stainless steel and high alloy steel. | |||||||
| PO | Recommended Tapping Speeds Depending On Materials | ||||||
| ISO Vc (m/min) | ISO Vc (m/min) | ISO Vc (m/min) | |||||
| P1 | M1 5÷15 | H | S1 | H 5÷10 | |||
| P2 | M2 5÷15 | H | S2 | H 5÷10 | |||
| ST | P3 | 5÷15 | H | M3 | 4÷8 H | ||
| P4 | 5÷15 | H | |||||
| P5 | 5÷10 | I | |||||
| P7 | 5÷15 | H | |||||
| ROLL | |||||||
| P8 | 4÷8 | H |
H 1st choice I suitable DIN-ZEN-B
TYPE: EU_142 TYPE: EU_025
CARBIDE
K K DCON DCON LT LK K
THL THL LK K
LS LONG LU LU LS LF
LF
HAND TYPE: EU_023 TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | SD3.0GBJPX | 3P | 56 | 5 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 142 | h |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | SD4.0IBJPX | 3P | 63 | 7 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 142 | h |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | SD5.0KBJPX | 3P | 70 | 9 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 142 | h |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | SD6.0MBJPX | 3P | 80 | 11 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 142 | h |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | SD8.0NBJPX | 3P | 90 | - | 12 | 35 | 47 | 8 | 6.2 | 9 | 3 | 025 | h |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | SD010OBJPX | 3P | 100 | - | 13 | 39 | 52 | 10 | 8 | 11 | 3 | 025 | h |
