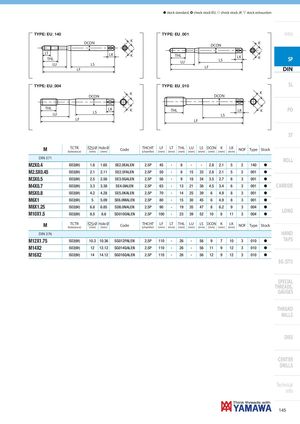

K DCON K DCON LT
LK K THL
LK K SP
THL LS LU LU LS LF DIN
LF
SL
TYPE: EU_004 TYPE: EU_010 K K DCON DCON
THL LK PO
K THL LK K
LS LU LS LF LF
ST
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | ROLL | ||||||||||||||||
| M2X0.4 | ISO2(6H) | 1.6 | 1.65 | SE2.0EALEN | 2.5P | 45 | - | 8 | - | - | 2.8 | 2.1 | 5 | 2 | 140 | h | |
| M2.5X0.45 | ISO2(6H) | 2.1 | 2.11 | SE2.5FALEN | 2.5P | 50 | - | 8 | 15 | 33 | 2.8 | 2.1 | 5 | 2 | 001 | h | |
| M3X0.5 | ISO2(6H) | 2.5 | 2.56 | SE3.0GALEN | 2.5P | 56 | - | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 001 | h | |
| M4X0.7 | ISO2(6H) | 3.3 | 3.38 | SE4.0IALEN | 2.5P | 63 | - | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 001 | h | CARBIDE |
| M5X0.8 | ISO2(6H) | 4.2 | 4.28 | SE5.0KALEN | 2.5P | 70 | - | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 001 | h | |
| M6X1 | ISO2(6H) | 5 | 5.09 | SE6.0MALEN | 2.5P | 80 | - | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 001 | h | |
| M8X1.25 | ISO2(6H) | 6.8 | 6.85 | SD8.0NALEN | 2.5P | 90 | - | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 004 | h | |
| M10X1.5 | ISO2(6H) | 8.5 | 8.6 | SD010OALEN | 2.5P | 100 | - | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 004 | h | LONG |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | HAND | ||||||||||||||||
| M12X1.75 | ISO2(6H) | 10.3 | 10.36 | SG012PALEN | 2.5P | 110 | - | 26 | - | 56 | 9 | 7 | 10 | 3 | 010 | h | TAPS |
| M14X2 | ISO2(6H) | 12 | 12.12 | SG014QALEN | 2.5P | 110 | - | 26 | - | 56 | 11 | 9 | 12 | 3 | 010 | h | |
| M16X2 | ISO2(6H) | 14 | 14.12 | SG016QALEN | 2.5P | 110 | - | 26 | - | 56 | 12 | 9 | 12 | 3 | 010 | h | |
| EG (STI) SPECIAL THREADS, GAUGES | |||||||||||||||||
| THREAD MILLS DIES CENTER DRILLS |
