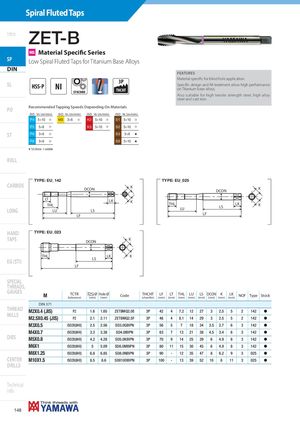

ZET-B
MS Material Specifi c Series
SP Low Spiral Fluted Taps for Titanium Base Alloys
DIN
3P
SL HSS-P NI
THCHT SYNCHRO
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P4 | 5÷10 | I | M3 | 3÷6 | I | K2 | 5÷10 | I | S1 | 5÷10 | I | |
| P5 | 5÷8 | I | K3 | 5÷10 | I | S2 | 5÷10 | I | ||||
| ST | P6 | 3÷6 | I | S3 | 3÷6 | H | ||||||
| P8 | 3÷6 | I | S5 | 5÷10 | H |
H 1st choice I suitable ROLL
FEATURES Material specifi c for blind hole application. Specifi c design and NI treatment allow high performance on Titanium base alloys. Also suitable for high tensile strength steel, high alloy steel and cast iron.
DIN-ZET-B
TYPE: EU_142
CARBIDE
DCON LT LK THL
LONG
LU LS LF
HAND TYPE: EU_023
TAPS
DCON
TYPE: EU_025 K
K THL LU
K
K DCON
LK K LS LF
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | ||||||||||||||||
| M2X0.4(JIS) | P2 | 1.6 | 1.65 | ZETBMQ2.0E | 3P | 42 | 4 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 142 | h |
| M2.5X0.45(JIS) | P2 | 2.1 | 2.11 | ZETBMQ2.5F | 3P | 46 | 4 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 142 | h |
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | SD3.0GBIPN | 3P | 56 | 5 | 7 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 142 | h |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | SD4.0IBIPN | 3P | 63 | 7 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 142 | h |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | SD5.0KBIPN | 3P | 70 | 9 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 142 | h |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | SD6.0MBIPN | 3P | 80 | 11 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 142 | h |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | SD8.0NBIPN | 3P | 90 | - | 12 | 35 | 47 | 8 | 6.2 | 9 | 3 | 025 | h |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | SD010OBIPN | 3P | 100 | - | 13 | 39 | 52 | 10 | 8 | 11 | 3 | 025 | h |
