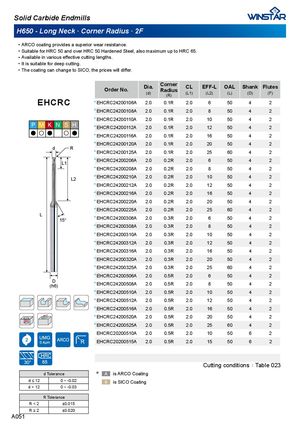

Solid Carbide Endmills H650 - Long Neck ∙ Corner Radius ∙ 2F ． ARCO coating provides a superior wear resistance. ． Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ． Available in various effective cutting lengths. ． It is suitable for deep cutting. ． The coating can change to SICO, the prices will differ. Dia. Corner CL EFF-L OAL Shank Flutes Order No. Radius (d) (L1) (L2) (L) (D) (F) (R) EHCRC * EHCRC24200106A 2.0 0.1R 2.0 6 50 4 2 * EHCRC24200108A 2.0 0.1R 2.0 8 50 4 2 * EHCRC24200110A 2.0 0.1R 2.0 10 50 4 2 P M K N S H * EHCRC24200112A 2.0 0.1R 2.0 12 50 4 2 ● ○ ● ○ ● * EHCRC24200116A 2.0 0.1R 2.0 16 50 4 2 * EHCRC24200120A 2.0 0.1R 2.0 20 50 4 2 d R * EHCRC24200125A 2.0 0.1R 2.0 25 60 4 2 * EHCRC24200206A 2.0 0.2R 2.0 6 50 4 2 L1 * EHCRC24200208A 2.0 0.2R 2.0 8 50 4 2 * EHCRC24200210A 2.0 0.2R 2.0 10 50 4 2 L2 * EHCRC24200212A 2.0 0.2R 2.0 12 50 4 2 * EHCRC24200216A 2.0 0.2R 2.0 16 50 4 2 * EHCRC24200220A 2.0 0.2R 2.0 20 50 4 2 * EHCRC24200225A 2.0 0.2R 2.0 25 60 4 2 L 15° * EHCRC24200306A 2.0 0.3R 2.0 6 50 4 2 * EHCRC24200308A 2.0 0.3R 2.0 8 50 4 2 * EHCRC24200310A 2.0 0.3R 2.0 10 50 4 2 * EHCRC24200312A 2.0 0.3R 2.0 12 50 4 2 * EHCRC24200316A 2.0 0.3R 2.0 16 50 4 2 * EHCRC24200320A 2.0 0.3R 2.0 20 50 4 2 * EHCRC24200325A 2.0 0.3R 2.0 25 60 4 2 * EHCRC24200506A 2.0 0.5R 2.0 6 50 4 2 D (h6) * EHCRC24200508A 2.0 0.5R 2.0 8 50 4 2 * EHCRC24200510A 2.0 0.5R 2.0 10 50 4 2 * EHCRC24200512A 2.0 0.5R 2.0 12 50 4 2 * EHCRC24200516A 2.0 0.5R 2.0 16 50 4 2 * EHCRC24200520A 2.0 0.5R 2.0 20 50 4 2 * EHCRC24200525A 2.0 0.5R 2.0 25 60 4 2 EHCRC20200510A 2.0 0.5R 2.0 10 50 6 2 EHCRC20200515A 2.0 0.5R 2.0 15 50 6 2 Cutting conditions : Table 023 d Tolerance ✽ is ARCO Coating d ≤ 12 0 ~ -0.02 is SICO Coating d > 12 0 ~ -0.03 R Tolerance R<2 ±0.015 R≥2 ±0.020 A051
