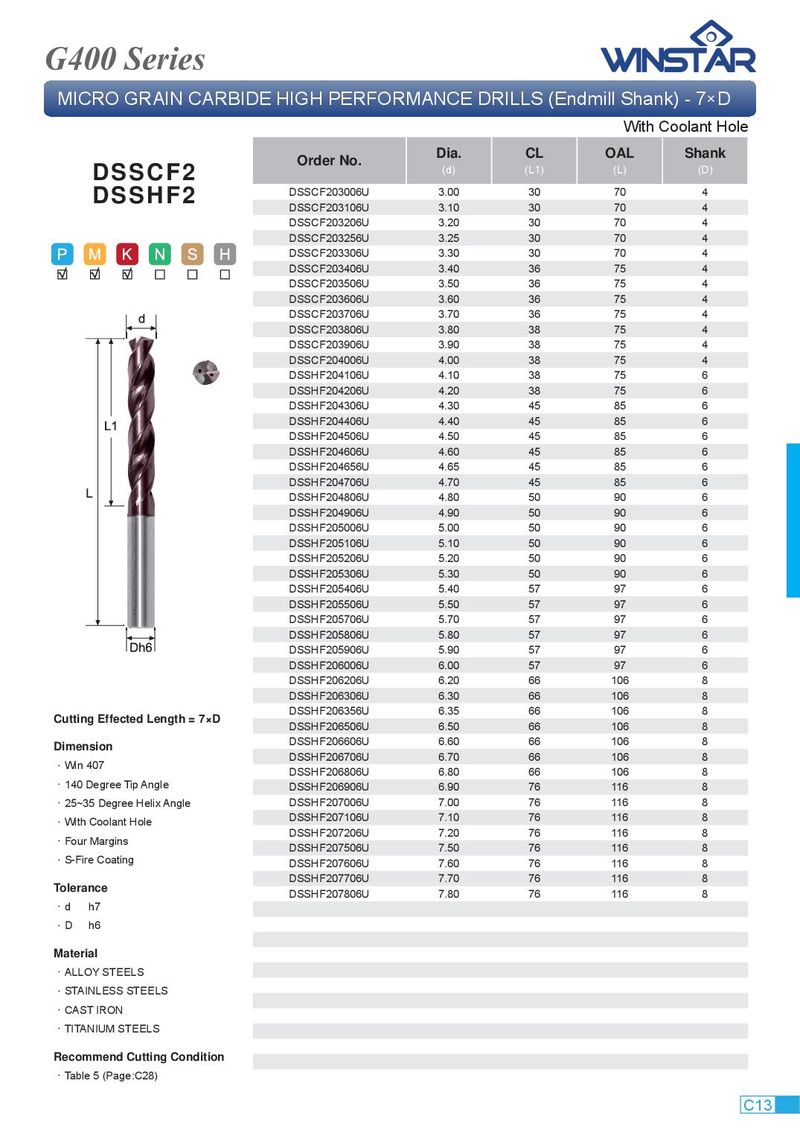

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 7×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSSCF2 DSSCF203006U 3.00 30 70 4 DSSHF2 DSSCF203106U 3.10 30 70 4 DSSCF203206U 3.20 30 70 4 DSSCF203256U 3.25 30 70 4 DSSCF203306U 3.30 30 70 4 DSSCF203406U 3.40 36 75 4 DSSCF203506U 3.50 36 75 4 DSSCF203606U 3.60 36 75 4 DSSCF203706U 3.70 36 75 4 DSSCF203806U 3.80 38 75 4 DSSCF203906U 3.90 38 75 4 DSSCF204006U 4.00 38 75 4 DSSHF204106U 4.10 38 75 6 DSSHF204206U 4.20 38 75 6 DSSHF204306U 4.30 45 85 6 DSSHF204406U 4.40 45 85 6 DSSHF204506U 4.50 45 85 6 DSSHF204606U 4.60 45 85 6 DSSHF204656U 4.65 45 85 6 DSSHF204706U 4.70 45 85 6 DSSHF204806U 4.80 50 90 6 DSSHF204906U 4.90 50 90 6 DSSHF205006U 5.00 50 90 6 DSSHF205106U 5.10 50 90 6 DSSHF205206U 5.20 50 90 6 DSSHF205306U 5.30 50 90 6 DSSHF205406U 5.40 57 97 6 DSSHF205506U 5.50 57 97 6 DSSHF205706U 5.70 57 97 6 DSSHF205806U 5.80 57 97 6 DSSHF205906U 5.90 57 97 6 DSSHF206006U 6.00 57 97 6 DSSHF206206U 6.20 66 106 8 DSSHF206306U 6.30 66 106 8 DSSHF206356U 6.35 66 106 8 Cutting Effected Length = 7×D DSSHF206506U 6.50 66 106 8 DSSHF206606U 6.60 66 106 8 Dimension DSSHF206706U 6.70 66 106 8 ． Win 407 DSSHF206806U 6.80 66 106 8 ． 140 Degree Tip Angle DSSHF206906U 6.90 76 116 8 ． 25~35 Degree Helix Angle DSSHF207006U 7.00 76 116 8 DSSHF207106U 7.10 76 116 8 ． With Coolant Hole DSSHF207206U 7.20 76 116 8 ． Four Margins DSSHF207506U 7.50 76 116 8 ． S-Fire Coating DSSHF207606U 7.60 76 116 8 DSSHF207706U 7.70 76 116 8 Tolerance DSSHF207806U 7.80 76 116 8 ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 5 (Page:C28) C13
