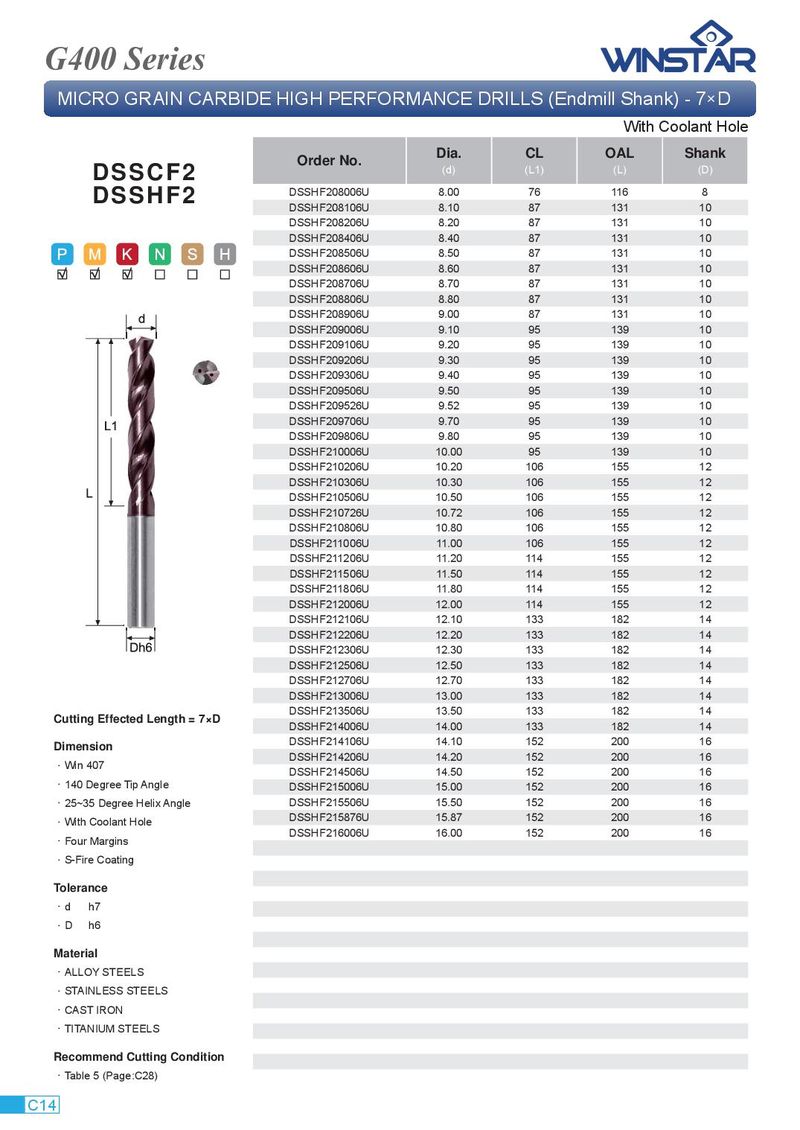

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 7×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSSCF2 DSSHF208006U 8.00 76 116 8 DSSHF2 DSSHF208106U 8.10 87 131 10 DSSHF208206U 8.20 87 131 10 DSSHF208406U 8.40 87 131 10 DSSHF208506U 8.50 87 131 10 DSSHF208606U 8.60 87 131 10 DSSHF208706U 8.70 87 131 10 DSSHF208806U 8.80 87 131 10 DSSHF208906U 9.00 87 131 10 DSSHF209006U 9.10 95 139 10 DSSHF209106U 9.20 95 139 10 DSSHF209206U 9.30 95 139 10 DSSHF209306U 9.40 95 139 10 DSSHF209506U 9.50 95 139 10 DSSHF209526U 9.52 95 139 10 DSSHF209706U 9.70 95 139 10 DSSHF209806U 9.80 95 139 10 DSSHF210006U 10.00 95 139 10 DSSHF210206U 10.20 106 155 12 DSSHF210306U 10.30 106 155 12 DSSHF210506U 10.50 106 155 12 DSSHF210726U 10.72 106 155 12 DSSHF210806U 10.80 106 155 12 DSSHF211006U 11.00 106 155 12 DSSHF211206U 11.20 114 155 12 DSSHF211506U 11.50 114 155 12 DSSHF211806U 11.80 114 155 12 DSSHF212006U 12.00 114 155 12 DSSHF212106U 12.10 133 182 14 DSSHF212206U 12.20 133 182 14 DSSHF212306U 12.30 133 182 14 DSSHF212506U 12.50 133 182 14 DSSHF212706U 12.70 133 182 14 DSSHF213006U 13.00 133 182 14 DSSHF213506U 13.50 133 182 14 Cutting Effected Length = 7×D DSSHF214006U 14.00 133 182 14 DSSHF214106U 14.10 152 200 16 Dimension DSSHF214206U 14.20 152 200 16 ． Win 407 DSSHF214506U 14.50 152 200 16 ． 140 Degree Tip Angle DSSHF215006U 15.00 152 200 16 ． 25~35 Degree Helix Angle DSSHF215506U 15.50 152 200 16 DSSHF215876U 15.87 152 200 16 ． With Coolant Hole DSSHF216006U 16.00 152 200 16 ． Four Margins ． S-Fire Coating Tolerance ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 5 (Page:C28) C14
