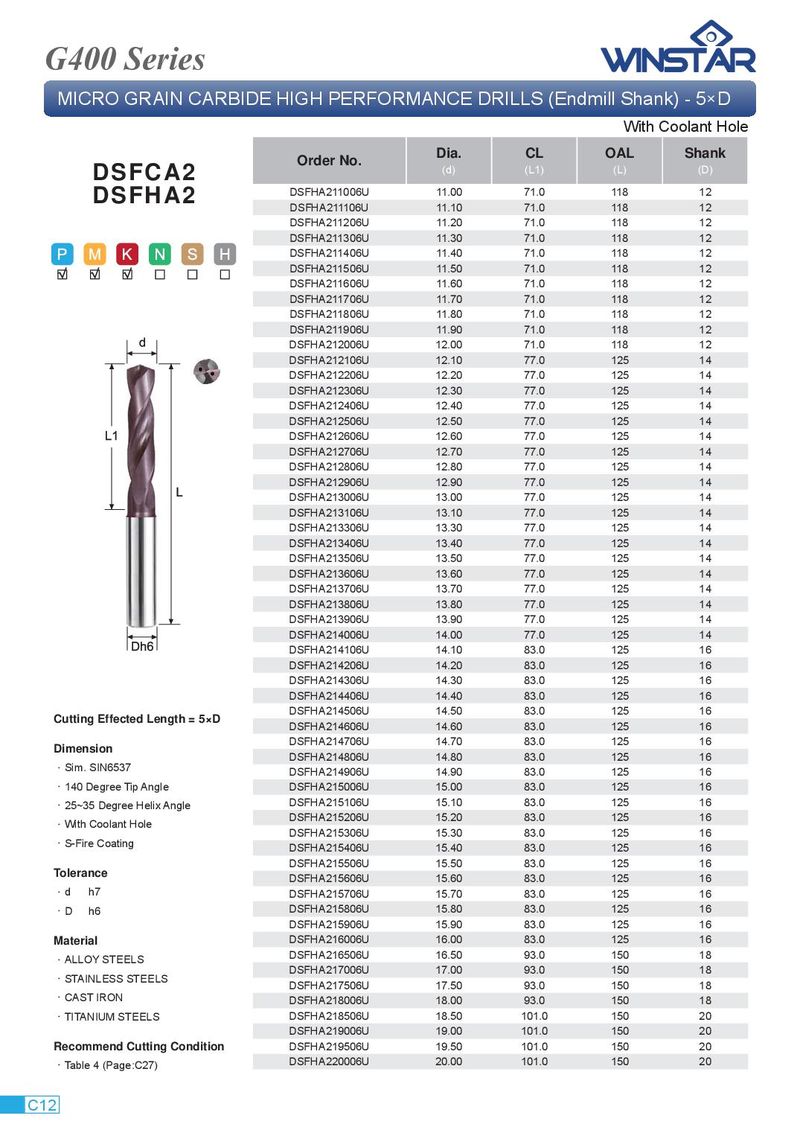

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 5×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSFCA2 DSFHA211006U 11.00 71.0 118 12 DSFHA2 DSFHA211106U 11.10 71.0 118 12 DSFHA211206U 11.20 71.0 118 12 DSFHA211306U 11.30 71.0 118 12 DSFHA211406U 11.40 71.0 118 12 DSFHA211506U 11.50 71.0 118 12 DSFHA211606U 11.60 71.0 118 12 DSFHA211706U 11.70 71.0 118 12 DSFHA211806U 11.80 71.0 118 12 DSFHA211906U 11.90 71.0 118 12 DSFHA212006U 12.00 71.0 118 12 DSFHA212106U 12.10 77.0 125 14 DSFHA212206U 12.20 77.0 125 14 DSFHA212306U 12.30 77.0 125 14 DSFHA212406U 12.40 77.0 125 14 DSFHA212506U 12.50 77.0 125 14 DSFHA212606U 12.60 77.0 125 14 DSFHA212706U 12.70 77.0 125 14 DSFHA212806U 12.80 77.0 125 14 DSFHA212906U 12.90 77.0 125 14 DSFHA213006U 13.00 77.0 125 14 DSFHA213106U 13.10 77.0 125 14 DSFHA213306U 13.30 77.0 125 14 DSFHA213406U 13.40 77.0 125 14 DSFHA213506U 13.50 77.0 125 14 DSFHA213606U 13.60 77.0 125 14 DSFHA213706U 13.70 77.0 125 14 DSFHA213806U 13.80 77.0 125 14 DSFHA213906U 13.90 77.0 125 14 DSFHA214006U 14.00 77.0 125 14 DSFHA214106U 14.10 83.0 125 16 DSFHA214206U 14.20 83.0 125 16 DSFHA214306U 14.30 83.0 125 16 DSFHA214406U 14.40 83.0 125 16 DSFHA214506U 14.50 83.0 125 16 Cutting Effected Length = 5×D DSFHA214606U 14.60 83.0 125 16 DSFHA214706U 14.70 83.0 125 16 Dimension DSFHA214806U 14.80 83.0 125 16 ． Sim. SIN6537 DSFHA214906U 14.90 83.0 125 16 ． 140 Degree Tip Angle DSFHA215006U 15.00 83.0 125 16 ． 25~35 Degree Helix Angle DSFHA215106U 15.10 83.0 125 16 DSFHA215206U 15.20 83.0 125 16 ． With Coolant Hole DSFHA215306U 15.30 83.0 125 16 ． S-Fire Coating DSFHA215406U 15.40 83.0 125 16 DSFHA215506U 15.50 83.0 125 16 Tolerance DSFHA215606U 15.60 83.0 125 16 ． d h7 DSFHA215706U 15.70 83.0 125 16 ． D h6 DSFHA215806U 15.80 83.0 125 16 DSFHA215906U 15.90 83.0 125 16 Material DSFHA216006U 16.00 83.0 125 16 DSFHA216506U 16.50 93.0 150 18 ． ALLOY STEELS DSFHA217006U 17.00 93.0 150 18 ． STAINLESS STEELS DSFHA217506U 17.50 93.0 150 18 ． CAST IRON DSFHA218006U 18.00 93.0 150 18 ． TITANIUM STEELS DSFHA218506U 18.50 101.0 150 20 DSFHA219006U 19.00 101.0 150 20 Recommend Cutting Condition DSFHA219506U 19.50 101.0 150 20 ． Table 4 (Page:C27) DSFHA220006U 20.00 101.0 150 20 C12
