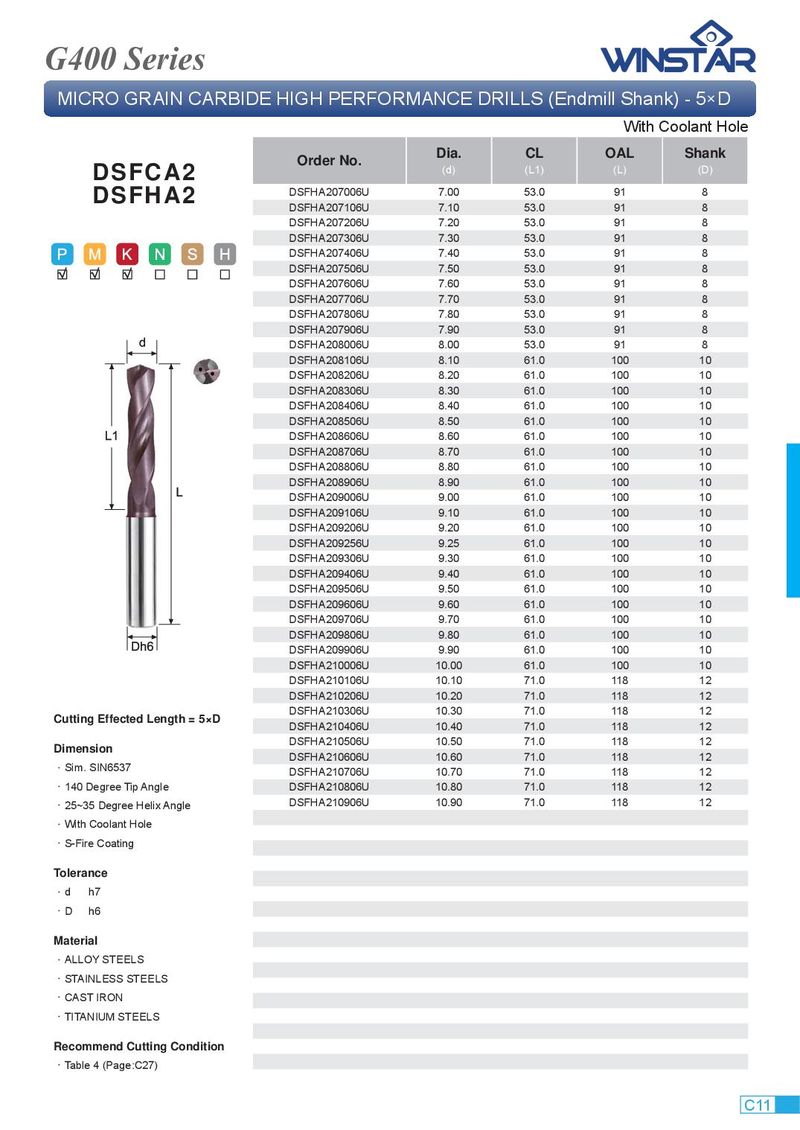

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 5×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSFCA2 DSFHA207006U 7.00 53.0 91 8 DSFHA2 DSFHA207106U 7.10 53.0 91 8 DSFHA207206U 7.20 53.0 91 8 DSFHA207306U 7.30 53.0 91 8 DSFHA207406U 7.40 53.0 91 8 DSFHA207506U 7.50 53.0 91 8 DSFHA207606U 7.60 53.0 91 8 DSFHA207706U 7.70 53.0 91 8 DSFHA207806U 7.80 53.0 91 8 DSFHA207906U 7.90 53.0 91 8 DSFHA208006U 8.00 53.0 91 8 DSFHA208106U 8.10 61.0 100 10 DSFHA208206U 8.20 61.0 100 10 DSFHA208306U 8.30 61.0 100 10 DSFHA208406U 8.40 61.0 100 10 DSFHA208506U 8.50 61.0 100 10 DSFHA208606U 8.60 61.0 100 10 DSFHA208706U 8.70 61.0 100 10 DSFHA208806U 8.80 61.0 100 10 DSFHA208906U 8.90 61.0 100 10 DSFHA209006U 9.00 61.0 100 10 DSFHA209106U 9.10 61.0 100 10 DSFHA209206U 9.20 61.0 100 10 DSFHA209256U 9.25 61.0 100 10 DSFHA209306U 9.30 61.0 100 10 DSFHA209406U 9.40 61.0 100 10 DSFHA209506U 9.50 61.0 100 10 DSFHA209606U 9.60 61.0 100 10 DSFHA209706U 9.70 61.0 100 10 DSFHA209806U 9.80 61.0 100 10 DSFHA209906U 9.90 61.0 100 10 DSFHA210006U 10.00 61.0 100 10 DSFHA210106U 10.10 71.0 118 12 DSFHA210206U 10.20 71.0 118 12 DSFHA210306U 10.30 71.0 118 12 Cutting Effected Length = 5×D DSFHA210406U 10.40 71.0 118 12 DSFHA210506U 10.50 71.0 118 12 Dimension DSFHA210606U 10.60 71.0 118 12 ． Sim. SIN6537 DSFHA210706U 10.70 71.0 118 12 ． 140 Degree Tip Angle DSFHA210806U 10.80 71.0 118 12 ． 25~35 Degree Helix Angle DSFHA210906U 10.90 71.0 118 12 ． With Coolant Hole ． S-Fire Coating Tolerance ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 4 (Page:C27) C11
